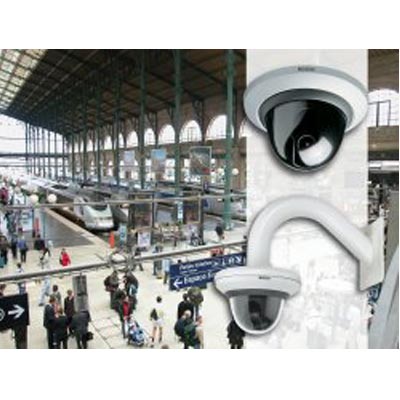

Bosch enhanced FlexiDome<SUP>XT</SUP> cameras displayed at IFSEC 2005
Product Profile
Three new models have recently been added to Bosch’s range of FlexiDomeXT plug-and-play, vandal-resistant fixed-dome cameras to extend distance and space functionality. The new models, on show at this year’s IFSEC, provide an additional choice of three new auto-iris VariFocal lenses for wider angle capture of between 24 and 105 degrees. This enables full coverage of confined spaces such as elevators, bank vaults or prison cells. A telephoto lens is also available with a very narrow angle of 24 degrees, suitable for close-up views in, for example, banks or retail stores. An additional new lens, with a speed of F1.2, is designed for sensitive low-light scenes.
NightSense, an innovative feature already available with Bosch’s Dinion camera range, is also now standard with all FlexiDomeXT colour cameras. NightSense increases three-fold for maximum image quality at very low light levels to allow around-the-clock surveillance and surveillance in areas with extremes of shadow. FlexiDomeXT surface-mounting possibilities have been extended with two additional options – the Pendant Wall Mount, with a curved conduit assembly, for vertical surfaces; and the Pendant Pipe Mount for ceiling mounting with unobstructed view.
Other features of the FlexiDomeXT range include:
Read more
NightSense, an innovative feature already available with Bosch’s Dinion camera range, is also now standard with all FlexiDomeXT colour cameras. NightSense increases three-fold for maximum image quality at very low light levels to allow around-the-clock surveillance and surveillance in areas with extremes of shadow. FlexiDomeXT surface-mounting possibilities have been extended with two additional options – the Pendant Wall Mount, with a curved conduit assembly, for vertical surfaces; and the Pendant Pipe Mount for ceiling mounting with unobstructed view.
Other features of the FlexiDomeXT range include:
- Line-block with phase adjustment (AC- & DC-compatible)
- Backlight compensation to avoid underexposure
- Proprietary pan/tilt/rotation mechanism for easy adjustment
- Compact, modern design and flush mounting
- Water- and dust-resistant, for both indoor and outdoor use
- Optional conduit-compatible hard-surface mounting
Technical Specification
| Make | Bosch |
|---|---|
| Manufacturer | Bosch Security Systems |
| Category | CCTV>Dome cameras |
| Model code | LTC 146 |
| Chip Inch Size | 1/4 inch |
| Colour Type | Colour / Monochrome |
| Resolution TVL | 540 |
| Dome Type | Continuous Rotation |
| Sensitivity lux | 0.2 lux |
| Indoor/Outdoor | Indoor/Outdoor |
| Mount Type | Ceiling, Wall mount |
| Electrical Specifications |
Voltage: 12 ~ 24 V AC Power Consumption: 2 W |
| Focal length | 2.8 ~ 6.0 |
| Rotation Angleso | 360 pan, 90 tilt |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | 1/50 (1/60) ~ 1/100,000 |
| S/ N (Signal/ Noise) Ratio dB | 48 |
| Synchronisation | Line-lock |
| Video Output | 1.0 Vp-p, 75 ohm |
| Network Properties | Control: PTZ |
| Physical Specifications |
Dimensions mm: 144 (Dia) x 87 Weight g: 500 |
| Environmental Specifications |
Operating Temp oC: -20 ~ +45 Protection: IP66 |
| Additional info | The FlexiDome series dome cameras include a high resolution colour and monochrome camera with an integrated varifocal DC iris lens with line-lock synchronisation, backlight compensation, auto white balance, auto electronic shutter capabilities. Units can withstand the equivalent of 120 lbs of force and is water and dust protected to IP66. |
| Download PDF version Download PDF version | |
