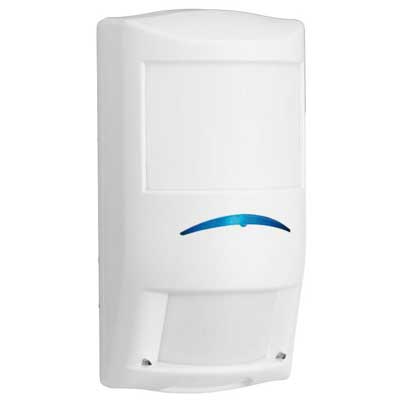

Bosch ISC-BDL2-WP12H pet-friendly tritech motion detector

Technical Specification

Features:

Make: Bosch
Model code: ISC-BDL2-WP12H
PIR Detectors: Yes
Coverage/ Range m: 12 x 12
Microwave: Yes

Additional info:

The Blue Line Gen2 TriTech motion detectors use a combination of passive infrared (PIR) and microwave detection technologies with advanced signal processing. The pet-friendly (-WP) models generate alarms for human intruders without generating false alarms for pets. Some of its functions include wall-to-wall coverage, self-locking enclosure, sealed optics and electronics as well as first step processing.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Bosch
Manufacturer	Bosch Security Systems
Category	Intruder Alarms>Intruder detectors
Model code	ISC-BDL2-WP12H
PIR Detectors	Yes
Coverage/ Range m	12 x 12
Microwave	Yes
Pet Tolerance	Yes
Power Consumption	10 mA
Sealed Optics	Yes
Mount Type	Surface, Semi-Flush
Wall/Ceiling Mount	Ceiling
Electrical Specifications	Power Supply: 9 ~ 15 V DC
Physical Specifications	Dimensions mm: 105 x 61 x 44
Environmental Specifications	Operating Temp ^oC: -30 ~ +55 C (-22 ~ +130 F)
Additional info	The Blue Line Gen2 TriTech motion detectors use a combination of passive infrared (PIR) and microwave detection technologies with advanced signal processing. The pet-friendly (-WP) models generate alarms for human intruders without generating false alarms for pets. Some of its functions include wall-to-wall coverage, self-locking enclosure, sealed optics and electronics as well as first step processing.
