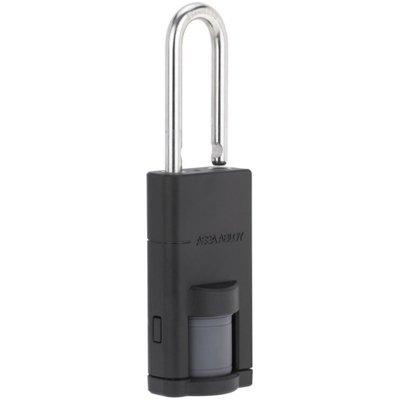

ASSA ABLOY Aperio P100 Padlock

Product Profile

The ASSA ABLOY Aperio P100 offers a rapid and efficient upgrade for access control. It is designed to be installed without the need for wiring or drilling, and it is compatible with nearly any system through Online, Offline, or OSS-standard offline integration.

Flexibility
The Aperio P100 is versatile in protecting various types of access points, including fences, gates, storage cages, racks, containers, tool cabinets, and other non-standard openings.

Easy Integration
The Aperio P100 integrates effortlessly with access control systems that use the Aperio AAPD protocol or a Wiegand hub. Notably, no database integration is required.

Easy Installation
Swapping out a mechanical padlock for an Aperio P100 is a quick process, taking just seconds to complete.

Convenience
The Aperio P100 supports industry-leading RFID credentials and also accommodates mobile (NFC) credentials for added convenience.

Read more

Technical Specification

Make ASSA ABLOY - Aperio®
Manufacturer ASSA ABLOY EMEA
Category Access Control>Electronic locking devices
Model code P100
Lock Type Electric Locks
Environmental Specifications Operating Temperature oC: -20 ~ +55 C (-4 ~ +131 F)
Operating Humidity %: < 85
Protection: IP66
Physical Specifications Dimensions mm: Body: 111.1 x 53.5 mm / Shackle: 63.3 x 39,5 mm
Additional info
  • Communication from hub via RS485 bus to the Online Access Control System (addressable) - access decision in the EAC system
  • Main electronics (RFID + radio) in the outside knob - secure electronics inside cylinder core
  • Freely rotating lock cam
  • Override Credentials: Up to 10 override credentials can be stored for an emergency access in case of failure or no communication with the access control or the hub
  • Smart Credential Handling: In addition to the override credentials, the last valid credentials (up to1000) can be cached automatically and for a limited time (up to 30 days), so that an opening can still be made without the intervention of the administrator
  • LED for status visualisation
  • Works with an online system or as an offline lock
Download PDF version Download PDF version
