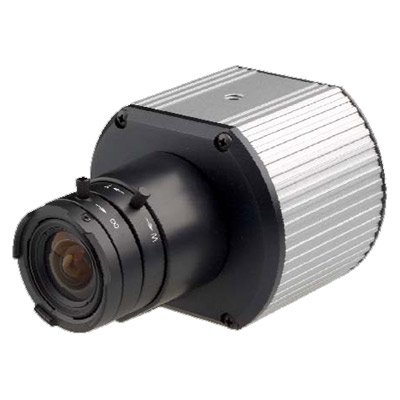

Arecont Vision's AV2100M 2 megapixel IP-camera with 0.1 Lux@F1.4
Technical Specification
- Make: AV Costar
- Previously known as: Arecont Vision
- Model code: AV2100M
- Chip Inch Size: 1/2 inch
- Colour Type: Colour
2 megapixel 1/2" colour CMOS image sensor. Dynamic range: 60 dB. Data transmission rate up to 55 Mbps. 50/60 Hz selectable flicker control. Electrical POE (IEEE 802.3af standard) or DC input. Forensic zooming; onboard motion detection.
Read moreMake | AV Costar |
---|---|
Manufacturer | AV Costar (Arecont Vision) |
Previously known as | Arecont Vision |
Category | CCTV>IP cameras |
Model code | AV2100M |
Chip Inch Size | 1/2 inch |
Colour Type | Colour |
Resolution | 1600 x 1200 resolution |
Specialist Type | PTZ |
Sensitivity Lux | 0.1 |
Electrical Specifications |
Voltage: 15 ~ 48 V DC Power Consumption: 3 W |
Lens Mount | C/CS mount |
Picture Elements HxV | 1280 x 1024 |
Network Properties |
Image Frame Rate: 24 ~ 30 fps Interface: 100Base-T Ethernet Network Protocols: TFTP, HTTP |
Back Light Compensation | Yes |
Auto Gain Control | Yes |
White Balance | Yes |
S/ N (Signal/ Noise) Ratio dB | 41 |
Zoom | Yes |
Compression Type | M-JPEG |
Physical Specifications |
Weight g: 450 Dimensions mm: 76.2 x 63.5 x 57.2 |
Environmental Specifications |
Operating Temperature oC: 0 ~ 50 Operating Humidity %: 0 ~ 90 |
Additional info |
2 megapixel 1/2" colour CMOS image sensor. Dynamic range: 60 dB. Data transmission rate up to 55 Mbps. 50/60 Hz selectable flicker control. Electrical POE (IEEE 802.3af standard) or DC input. Forensic zooming; onboard motion detection. |
