Arecont Vision's AV1300M 1.3 Mpixel IP-camera sensitive to 0.1 lux@F1.4

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

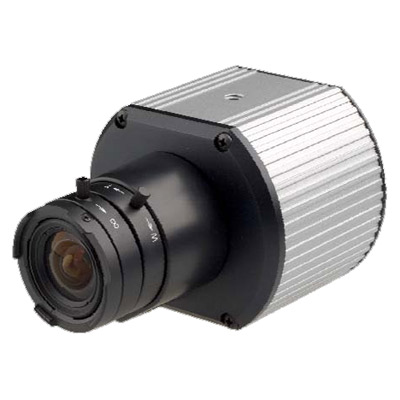

Arecont Vision's AV1300M 1.3 Mpixel IP-camera sensitive to 0.1 lux@F1.4

Features:

Make: AV Costar
Previously known as: Arecont Vision
Model code: AV1300M
Chip Inch Size: 1/2 inch
Colour Type: Colour

Additional info:

Dynamic range: 60 dB. Data transmission rate up to 55 Mbps. Electrical POE (IEEE 802.3af standard) or DC input. Forensic zooming; onboard motion detection.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	AV Costar
Manufacturer	AV Costar (Arecont Vision)
Previously known as	Arecont Vision
Category	CCTV>IP cameras
Model code	AV1300M
Chip Inch Size	1/2 inch
Colour Type	Colour
Resolution	1280 x 1024 resolution
Specialist Type	PTZ
Sensitivity Lux	0.1
Lens Mount	C/CS mount
Electrical Specifications	Voltage: 12 ~ 48 V DC Power Consumption: 3 W
Picture Elements HxV	1280 x 1024
Network Properties	Image Frame Rate: 30 fps Interface: 100Base-T Ethernet Network Protocols: TFTP, HTTP
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
S/ N (Signal/ Noise) Ratio dB	45
Zoom	Yes
Compression Type	M-JPEG
Physical Specifications	Weight g: 450 Dimensions mm: 76.2 x 63.5 x 57.2
Environmental Specifications	Operating Temperature ^oC: 0 ~ 50 Operating Humidity %: 0 ~ 90
Additional info	Dynamic range: 60 dB. Data transmission rate up to 55 Mbps. Electrical POE (IEEE 802.3af standard) or DC input. Forensic zooming; onboard motion detection.
