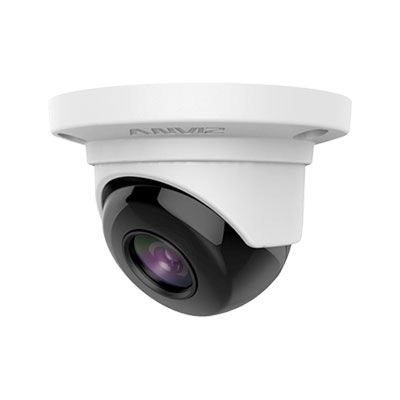

Anviz Global EA3402-IEA fixed mini IR dome camera

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Anviz Global EA3402-IEA fixed mini IR dome camera

Features:

Make: Anviz
Model code: EA3402-IEA
Series: EasyView
Chip Inch Size: 1/3 inch
Resolution TVL: 1 MP

Additional info:

Anviz Global's EA3402-IEA features an IR anti-reflection shield to hide IR lights and increase the infrared transmittance for clearer images. Its IP66 waterproof design is ideal for indoor/outdoor mounting.

Contact manufacturer Contact manufacturer

Make	Anviz
Manufacturer	Anviz Global Inc.
Category	CCTV>Dome cameras
Model code	EA3402-IEA
Chip Inch Size	1/3 inch
Resolution TVL	1 MP
Dome Type	Static
Sensitivity lux	0.02 lux
Digital (DSP)	Yes
Electrical Specifications	Voltage: 12 V DC Power Consumption: < 12 W
Focal length	3.6 ~ 8
Compression	H.264, MJPEG
S/ N (Signal/ Noise) Ratio dB	>52
Built-in IR LED	Yes
Network Properties	Interface: RJ-45 (10/100/1000Base-T) Network Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS Image Frame Rate: 30 fps
Physical Specifications	Dimensions mm: 92 x 65 Weight g: 248
Environmental Specifications	Operating Temp ^oC: -30 ~ +60 C (-22 ~ +140 F) Protection: IP66
Additional info	Anviz Global's EA3402-IEA features an IR anti-reflection shield to hide IR lights and increase the infrared transmittance for clearer images. Its IP66 waterproof design is ideal for indoor/outdoor mounting.
