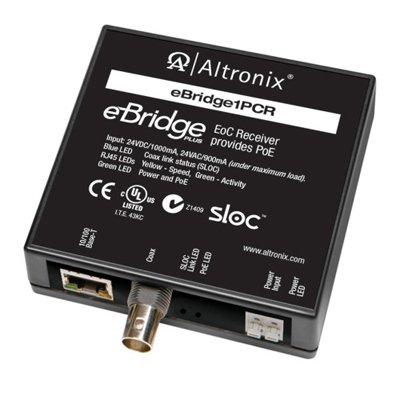

Altronix eBridge1PCR EoC Single Port Receiver
Technical Specification
- Make: Altronix
- Model code: eBridge1PCR
- Receiver Type: Yes
- No of Video Inputs: 1 channels
- Dimensions mm: 88 x 25 x 97
eBridge1PCR is a single port EoC Receiver that transmits data and power over coax cable. eBridge1PCR generates PoE up the coax to an eBridge1PCT transceiver. The transceiver in turn delivers that PoE compliant power to an edge device/camera. This plug and play unit facilitates system upgrades from analog to IP utilizing existing legacy Coax and eliminates the costs and labor associated with installing new network cabling. Data transmission and power over the Coax is possible up to 500m in comparison to 100m Ethernet distance (CAT5e). A maximum range from head end to the edge device/camera is 610m, taking into consideration that up to 100m of structured cable may be deployed from the receiver to the network switch and the transceiver to the edge device/camera.
Read moreMake | Altronix |
---|---|
Manufacturer | Altronix |
Category | CCTV>Fibre optics, telemetry receivers, transmitters, transceivers |
Model code | eBridge1PCR |
Receiver Type | Yes |
No of Video Inputs | 1 channels |
Physical Specifications |
Dimensions mm: 88 x 25 x 97 Weight g: 125 |
Environmental Specifications |
Operating Temperature oC: -20 ~ +45 C (-4 ~ +113 F) Operating Humidity %: 85 |
Electrical Specifications |
Voltage: 24 V DC / 24 V AC Power Consumption: 24VDC/1,000mA, 24VAC/900mA |
Additional info |
eBridge1PCR is a single port EoC Receiver that transmits data and power over coax cable. eBridge1PCR generates PoE up the coax to an eBridge1PCT transceiver. The transceiver in turn delivers that PoE compliant power to an edge device/camera. This plug and play unit facilitates system upgrades from analog to IP utilizing existing legacy Coax and eliminates the costs and labor associated with installing new network cabling. Data transmission and power over the Coax is possible up to 500m in comparison to 100m Ethernet distance (CAT5e). A maximum range from head end to the edge device/camera is 610m, taking into consideration that up to 100m of structured cable may be deployed from the receiver to the network switch and the transceiver to the edge device/camera. |
Download PDF version Download PDF version |
