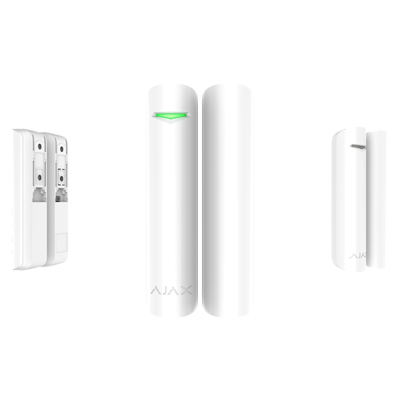

Ajax DoorProtect Plus wireless opening detector

Technical Specification

Features:

Make: Ajax
Model code: DoorProtect Plus
Shock Sensor: Yes
Indoor/Outdoor: Indoor
Power Supply: 3V

Additional info:

Wireless door and window opening detector with shock and tilt sensors designed for indoor use. It notifies of first signs of intrusion into the room through the door or window. It is installed even on roof windows which can be left open when leaving the house. Principle of operation The device detects the door or window being opened by means of British-made hi-end reed switches on which the magnetic field acts. It can operate in the transmitter mode, sending a signal from the wired sensor to the hub. Features The device protects even windows left open for ventilation. The accelerometer registers changes in vertical slope angle, bangs or vibration and sends an alarm to the hub. Installation and set up Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.

Contact manufacturer Contact manufacturer

Make	Ajax
Manufacturer	Ajax Systems
Category	Intruder Alarms>Intruder detectors
Model code	DoorProtect Plus
Shock Sensor	Yes
Indoor/Outdoor	Indoor
Electrical Specifications	Power Supply: 3V
Physical Specifications	Dimensions mm: 90 x 21 x 20
Environmental Specifications	Operating Temp ^oC: -10 ~ +40 C (14 ~ 104 F)
Additional info	Wireless door and window opening detector with shock and tilt sensors designed for indoor use. It notifies of first signs of intrusion into the room through the door or window. It is installed even on roof windows which can be left open when leaving the house. Principle of operation The device detects the door or window being opened by means of British-made hi-end reed switches on which the magnetic field acts. It can operate in the transmitter mode, sending a signal from the wired sensor to the hub. Features The device protects even windows left open for ventilation. The accelerometer registers changes in vertical slope angle, bangs or vibration and sends an alarm to the hub. Installation and set up Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.
