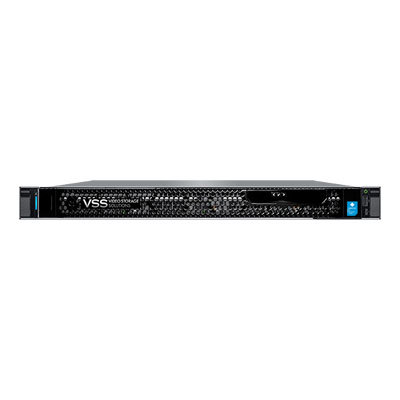

Video Storage Solutions VSS-MS-41-M 4-bay rackmount video recording appliance

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Video Storage Solutions VSS-MS-41-M 4-bay rackmount video recording appliance

Features:

Make: Video Storage Solutions
Model code: VSS-MS-41-M
Series: M-Series
Recording system: HDD
Storage capacity: 56 TB

Additional info:

Guaranteed Bandwidth Capability : Up to 300 Mbps Integrated with Milestone Systems XProtect® Up to 56TB of raw video-optimised storage Intel® Xeon® E-2136 Processor Up to 64 GB of DDR4 RAM Operating System: Windows 10 Pro, Windows Server 2016 Video grade SATA & dual-port SAS drives RAID options: 0, 1, 5, 6, 10 Redundant power iDRAC features include Remote Management, Disaster Recovery, Critical Resource Monitoring

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Video Storage Solutions
Manufacturer	Video Storage Solutions
Category	CCTV>Network video recorders (NVRs)
Model code	VSS-MS-41-M
Recording system	HDD
Storage capacity	56 TB
Secondary storage	USB
Operating system	Windows 10 Pro, Windows Server 2016
Electrical Specifications	Voltage: 100 ~ 240 V AC Power consumption (W): 350
Physical Specifications	Weight (kg): 13.6 Dimensions (mm): 483 x 609 x 43
Environmental Specifications	Operating temperature (°C): 10 ~ 35 C (50 ~ 95 F) Operating humidity (%): 5 ~ 90
Additional info	Guaranteed Bandwidth Capability : Up to 300 Mbps Integrated with Milestone Systems XProtect® Up to 56TB of raw video-optimised storage Intel® Xeon® E-2136 Processor Up to 64 GB of DDR4 RAM Operating System: Windows 10 Pro, Windows Server 2016 Video grade SATA & dual-port SAS drives RAID options: 0, 1, 5, 6, 10 Redundant power iDRAC features include Remote Management, Disaster Recovery, Critical Resource Monitoring
