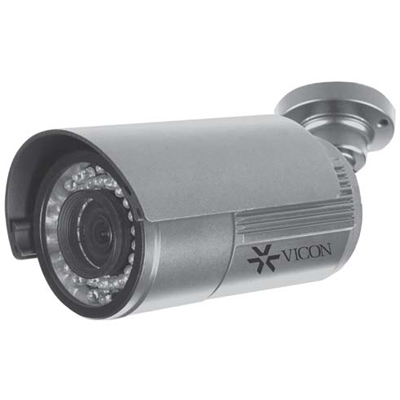

Vicon V962B-IR312M megapixel true day / night bullet IR camera

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Vicon V962B-IR312M megapixel true day / night bullet IR camera

Features:

Make: Vicon
Model code: V962B-IR312M
Chip Inch Size: 1/3 inch
Colour Type: True Day / Night
Resolution: 1280 x 720 resolution

Additional info:

More Network Protocols: *IGMP, SMTP, DHCP, NTP, DNS, DDNS, UDP, ARP. Vicon’s V960B Series of HD IP bullet cameras are designed for demanding security installations. It offers a number of fixed network camera versions that deliver crisp clear images to fit any installation need. The V960B Series provides dual-streaming video and supports H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Vicon
Manufacturer	Vicon Industries
Category	CCTV>IP cameras
Model code	V962B-IR312M
Chip Inch Size	1/3 inch
Colour Type	True Day / Night
Resolution	1280 x 720 resolution
Digital (DSP)	Yes
Specialist Type	Infrared
Sensitivity Lux	0.07
Auto Iris	Yes
Direct Drive	Yes
Electrical Specifications	Voltage: 12 V DC / 24 V AC / PoE Power Consumption: 4.1 / 6.4 / 8.4 W
Focal Length mm	3.3 ~ 12
Mount Type	Wall, In-ceiling
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter Range	1/4 ~1/2000 sec
S/ N (Signal/ Noise) Ratio dB	> 50
Signal Mode	PAL / NTSC
Network Properties	Network Protocols: IPv4, IPv6, TCP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP*
Physical Specifications	Weight g: 740 Dimensions mm: 85 x 92 x 189
Environmental Specifications	Protection: IP66 Operating Temperature ^oC: -29 ~ 50 Operating Humidity %: < 90
HD	Yes
Additional info	More Network Protocols: *IGMP, SMTP, DHCP, NTP, DNS, DDNS, UDP, ARP. Vicon’s V960B Series of HD IP bullet cameras are designed for demanding security installations. It offers a number of fixed network camera versions that deliver crisp clear images to fit any installation need. The V960B Series provides dual-streaming video and supports H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth.
