OT Systems ET4222PpH is an etnernet switch that support IGMP with a simple click of a dip switch. In large IP CCTV surveillance systems, IP cameras employ multicast transmission to reduce the needed bandwidth. However, an unmanaged Ethernet switch is poorly equipped to receive multicast packets; it converts them to broadcast packets. The system then sends broadcast packets to every port in the switch resulting in video loss or disconnection. OT Systems has eliminated that concern. By simply changing the dip switch, the ET4222PpH efficiently receives multicast packets and only forwards the data to the appropriate port. This innovative feature saves bandwidth and maximises the switch performance, increasing the systems effectiveness and reliability.

ET1100CPp-R is a receiver of 10/100Base-TX (PoE+) Ethernet over coaxial with PoC featuring data rate up to 90Mbps, and is compatible with 4-port standalone receiver.

ET1100CPp-T is a transmitter of 10/100Base-TX (PoE+) Ethernet over coaxial with PoC featuring data rate up to 90Mbps, and is compatible with 4-port standalone receiver.

Support IEEE802.3 at PoE+ (30W per port) Combo RJ45 Port Supports 10/100/1000Mbps Supports external SFP Supports 4K MAC address Supports wall-mount and DIN-Rail installation

ET4100CPp-TS is a transmitter of 4-port 10/100Mbps TX (PoE+) to 1-port coax ethernet switch with PoC featuring maximum transmission distance: 800m on RG-59/U coaxial cable, connecting up to 4 IP cameras or devices and automatically supports multicast transmission(IGMP).

Support IEEE 802.3at PoE+ (30W per port) Multicast / Broadcast / Flooding Storm Control Support 802.1p QoS, 4 queues per port 9K Jumbo Frames 1Mbit Packet Buffer Memory Fanless design Dual power input (12 ~ 58 VDC) IP30 DIN-Rail and Wall mounting options

Support IEEE 802.3at PoE+ (30W per port) Multicast / Broadcast / Flooding Storm Control Support 802.1p QoS, 4 queues per port 9K Jumbo Frames 1Mbit Packet Buffer Memory Fanless design Dual power input (12 ~ 58 VDC) IP30 DIN-Rail and Wall mounting options Hardened Series Wide Operating Temperature Range -40°C to 75°C (-40°F to 167°F)

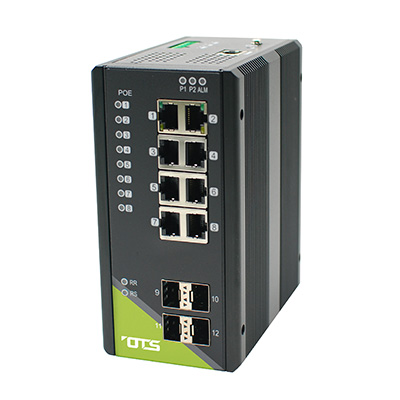

The IET8242MPp Series is especially designed for high speed data communication of PoE devices in local and remote endconnections.The IET8242MPp Series is the fully managed switches offering eight 10/100/1000Mbps copper twisted-pair ports with high power PoEplus four 100/1000Mbps SFP ports.

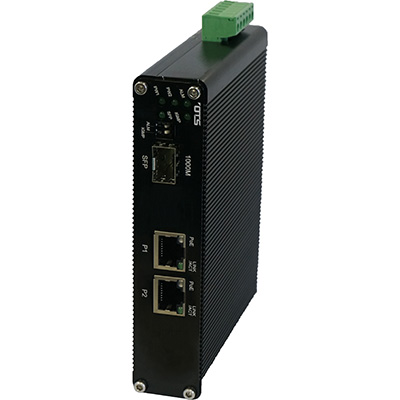

2 10/100/1000Base-TX + 1 1000Base-FX SFP Automatically support IGMP (Multicasting) 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX Supports 802.3x Flow control Supports external 1000Base SFP Supports IEEE 802.3at PoE+ (30W) Supports Light Hardware IGMP V1, V2, V3 Supports Broadcast Storm Control 1M bits frame buffer memory 9K Bytes Jumbo Frame Supports Relay output for Power failure and port failure alarm Redundant Power Inputs Supports Wall-mount and DIN-Rail installation

8 10/100/1000Base-TX(PoE+) + 2 100/1000Base-FX SFP Support IEEE802.3at PoE+(30W per port) RJ45 Port Supports 10/100/1000Mbps-Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX SFP Slot Supports 100/1000Mbps Supports IEEE802.1p Qos and Cos/Tos Supports IGMP v1/v2, up to 256 groups Web GUI, Serial Console, CLI Command configuration Supports IEEE802.1Q VLAN, SNMP v1/v2c/v3 Network Redundancy support: G.8032 ERPS, RSTP, MSTP Redundant Power Inputs DIN-Rail and Wall-mount options

Supports IEEE802.3at PoE+ (30W per port) Combo RJ45 Port Supports 10/100/1000Mbps Supports external SFP Supports 4K MAC address 19” 1U Rack-mount

Supports IEEE802.3af PoE (15.4W per port) Supports auto-negotiation and auto MDI/MDI-X Supports store-and-forward transmission Supports power saving technology

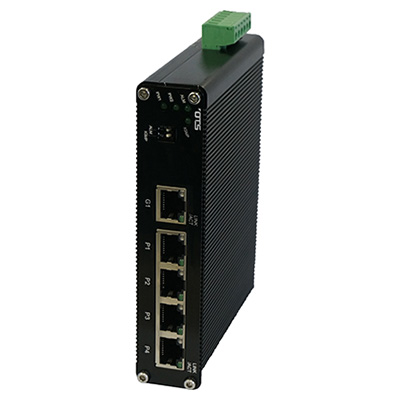

ET5200Pp-DR is an industrial IP CCTV self-configured 5-port 10/100/1000Base-TX Ethernet switch featuring 1M bits frame buffer memory and 9K bytes jumbo frame. The Ethernet switch supports light hardware IGMP V1, V2, V3 and supports broadcast storm control.

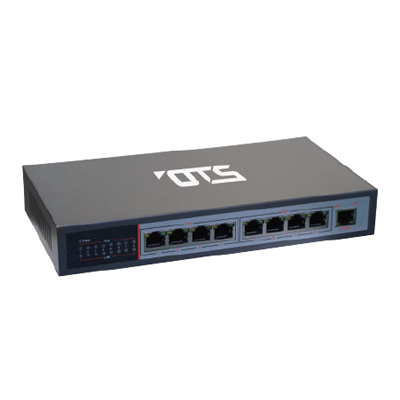

OT Systems EC9100P is an unmanaged 8-port 10/100Base-TX (PoE) Ethernet switch.

Supports IEEE802.3at PoE+ (30W per port) Combo RJ45 Port Supports 10/100/1000Mbps Supports external 1000M SFP Supports 4K MAC address 19” 1U rack-mount

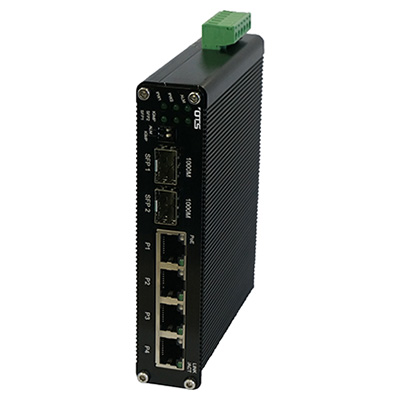

ET4222Pp-S-DR is an industrial IP CCTV Self-Configured 4-port 10/100/1000Base Ethernet switch, which automatically supports IGMP (Multicasting) and 10/100/1000Mbps-full/half-duplex,auto-negotiation, auto MDI/MDI-X. Additionally, the ethernet supports wall-mount and DIN-Rail installation.

8 10/100/1000Base-T(PoE+) + 2 10/100/1000Base-T or 100/1000Base-X SFP Support IEEE802.3at PoE+(30W per port) RJ45 Port Supports 10/100/1000Mbps-Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX SFP Slot Supports 100/1000Mbps Supports IGMP v1/v2/v3, up to 1024 groups Supports IEEE1588v2 PTP Supports IEEE802.1Q VLAN, SNMP v1/v2c/v3 Web GUI, Serial Console, CLI Command configuration Network Redundancy support: G.8032 ERPS, RSTP, MSTP 6KV surge protected Redundant DC Power Inputs Embedded Surveillance Device Management

Automatically support IGMP (Multicasting) Supports 10/100/1000Mbps-Full/Half-duplex Supports external 1000Base SFP Supports Daisy-Chain connection Supports IEEE 802.3at PoE+ (30W per port)

OT Systems ET1111P-C is an industrial 10/100Base-TX (PoE) to 100Base-FX ethernet media converter. It includes full wire-speed forwarding rate and supports wall mount installation.

OT Systems ET1111P-E is an industrial 10/100Base-TX (PoE) to 100Base-FX ethernet media converter. It includes full wire-speed forwarding rate and supports wall mount installation.

OT Systems ET1111P-G is an industrial 10/100Base-TX (PoE) to 100Base-FX ethernet media converter. It includes full wire-speed forwarding rate and supports wall mount installation.

1 RJ45 PoE PSE input port (data+power) + 1 RJ45 Ethernet data output port (data only) Support 10/100/1000Base-TX Support IEEE802.3at Power over Ethernet (PoE+) power sourcing equipment Extensive LED indicators for PoE diagnostics Support DIN-Rail & wall-mount installation

OT Systems ET1111P-B is an industrial 10/100Base-TX (PoE) to 100Base-FX ethernet media converter. It includes full wire-speed forwarding rate and supports wall mount installation.

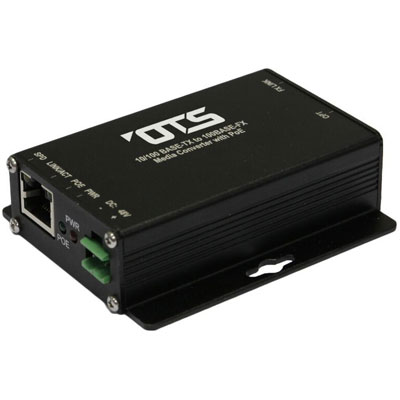

OT Systems ET1111P-H is an industrial 10/100Base-TX (PoE) to 100Base-FX ethernet media converter. It includes full wire-speed forwarding rate and supports wall mount installation.

OT Systems ET1111P-I is an industrial 10/100Base-TX (PoE) to 100Base-FX Ethernet media converter. It includes full wire-speed forwarding rate and supports wall mount installation.

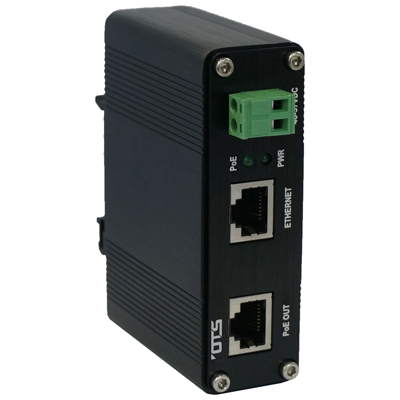

1 RJ45 Ethernet data input Port + 1 RJ45 Power over Ethernet output port (data + power) Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment Support 10/100/1000Base-TX Extensive LED indicatiors for PoE diagnostics Support DIN-Rail & wall-mount installation

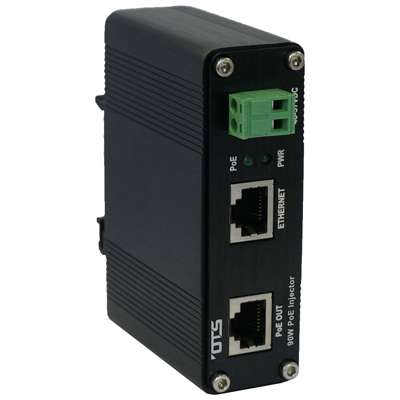

OT Systems ET-INJ90 hardened Gigabit single-port 90W PoE injector features 10/100/1000Base-TX support, extensive LED indicators for PoE diagnostics, 48~57VDC terminal block power inputs, DIN-Rail and wall-mount installation, 1 RJ45 Ethernet data input port + 1 RJ45 Power over Ethernet output port (data + power) etc.

OT Systems ET-INJ60 hardened Gigabit single-port 60W PoE injector features compatible IEEE802.3at PoE+, 10/100/1000Base-TX support, extensive LED indicators for PoE diagnostics and RJ45 Ethernet data input port + 1 RJ45 Power over Ethernet output port (data + power) etc.
