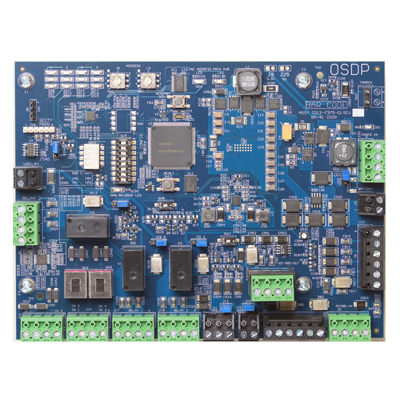

Software House G2-RM-4E OSDP Door Control Modules

Technical Specification

Features:
  • Make: Software House
  • Model code: G2-RM-4E
  • Communication Type: RS485 half-duplex, OSDP or RM protocol, dip switch selectable
  • Universal / Wiegand Reader Interface: Yes
  • Voltage: 12 V DC / 24 V DC
Additional info:

Cost Effective Wiring - Full-featured local door control module lowers wiring costs & reduces installation time Distributed I/O for One Door - Lower wiring costs by keeping it local.Up to 4 supervised inputs, 3 outputs in a compact door module Status LEDs on inputs and outputs for flexible control and troubleshooting. Versatile Communication - Choice of OSDP* Secure Channel or Software House “RM” via onboard dip switch. Plug-in screw terminals and built-in tamper switch provides secure and efficient installation Flexible Output Wiring Choices - Additional internal connections support magnetic lock features and accommodate local bypass switch.

Read more
Make Software House
Manufacturer Software House
Category Access Control>Access control controllers
Model code G2-RM-4E
Communication Type RS485 half-duplex, OSDP or RM protocol, dip switch selectable
Universal / Wiegand Reader Interface Yes
Electrical Specifications Voltage: 12 V DC / 24 V DC
Physical Specifications Dimensions mm: 356 x 305 x 89
Weight g: 4500
Environmental Specifications Operating Temp oC: 0 ~ 50 C (32 ~ 122 F)
Additional info
  • Cost Effective Wiring - Full-featured local door control module lowers wiring costs & reduces installation time
  • Distributed I/O for One Door - Lower wiring costs by keeping it local.Up to 4 supervised inputs, 3 outputs in a compact door module
  • Status LEDs on inputs and outputs for flexible control and troubleshooting.
  • Versatile Communication - Choice of OSDP* Secure Channel or Software House “RM” via onboard dip switch.
  • Plug-in screw terminals and built-in tamper switch provides secure and efficient installation
  • Flexible Output Wiring Choices - Additional internal connections support magnetic lock features and accommodate local bypass switch.
