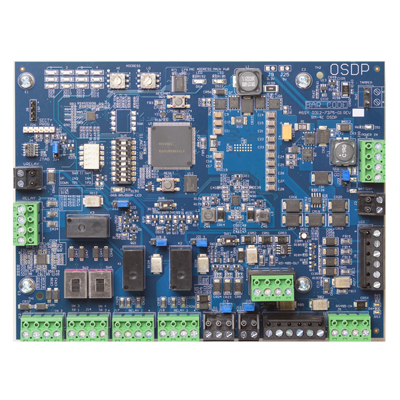

Software House G2-RM-4E-5PK OSDP/RM-4E - G2 - Enhanced RM-4 board, 5-Pack Five modules shipped in one package
Technical Specification
- Make: Software House
- Model code: G2-RM-4E-5PK
- Communication Type: RS485 half-duplex, OSDP or RM protocol, dip switch selectable
- Universal / Wiegand Reader Interface: Yes
- Voltage: 12 V DC / 24 V DC
Cost Effective Wiring - Full-featured local door control module lowers wiring costs & reduces installation time Distributed I/O for One Door - Lower wiring costs by keeping it local.Up to 4 supervised inputs, 3 outputs in a compact door module Status LEDs on inputs and outputs for flexible control and troubleshooting. Versatile Communication - Choice of OSDP* Secure Channel or Software House “RM” via onboard dip switch. Plug-in screw terminals and built-in tamper switch provides secure and efficient installation Flexible Output Wiring Choices - Additional internal connections support magnetic lock features and accommodate local bypass switch.
Read moreMake | Software House |
---|---|
Manufacturer | Software House |
Category | Access Control>Access control controllers |
Model code | G2-RM-4E-5PK |
Communication Type | RS485 half-duplex, OSDP or RM protocol, dip switch selectable |
Universal / Wiegand Reader Interface | Yes |
Electrical Specifications | Voltage: 12 V DC / 24 V DC |
Physical Specifications |
Dimensions mm: 356 x 305 x 89 Weight g: 4500 |
Environmental Specifications | Operating Temp oC: 0 ~ 50 C (32 ~ 122 F) |
Additional info |
|
Download PDF version Download PDF version |
