Honeywell Security ACUIX™ ES Series  (25)

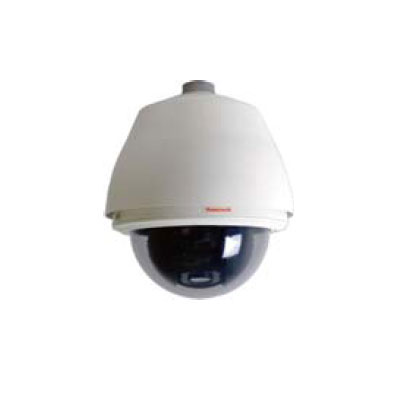

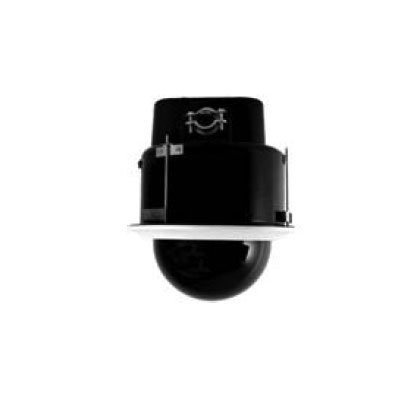

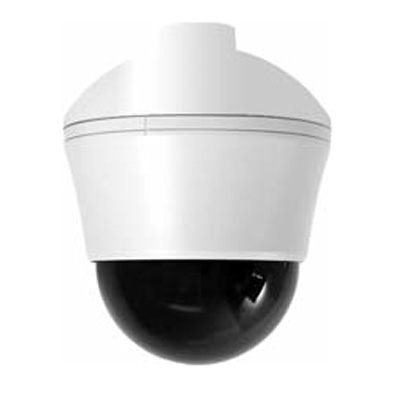

ACUIX™ ES range provides superior quality video both indoors and outdoors at a competitive price.The ACUIX™ ES PTZ dome features four housing configurations and four integrated high-resolution, auto-focus cameras for virtually any application. The indoor colour cameras are available with either an 18X zoom lens and 460 TVL (PAL) of resolution or a fixed 2.8-10mm vari-focal auto-iris lens and 540 TVL of resolution. The outdoor Wide Dynamic Range (WDR) and True Day/Night (TDN) models feature 18X, 26X and 36X zoom lenses and up to 530 TVL PAL of resolution. The quick and easy installation characteristics make the ACUIX™ ES the undisputed first choice when a cost competitive, fully featured dome is required.Like the ACUIX PTZ dome, the ACUIX ES PTZ dome uses Honeywell proprietary technology that allows users to remotely upload firmware to all domes and permits secure storage of all camera settings such as labels, presets, tours, and privacy zones.The ACUIX ES PTZ comes with many software features that increase performance and make installation and operation easy. Privacy Zones allow a user to mask up to 24 regions to ensure sensitive areas remain obscured (up to eight on screen at once). Password protection prevents unauthorised users from changing system settings. Standard options include UTP video and up to 8 dry contact inputs. Multi-language menus are provided for English, French, German, Dutch, Italian, Polish, Czech and Spanish.Market OpportunitiesThe combination of Honeywell technology, advanced video processing, and low-profile design makes ACUIX™ ES ideally suited for retail, banking and finance, healthcare, schools and campuses, and anywhere detailed surveillance is essential. Highly reliable, ACUIX ES offers world-class performance and seamless system integration. ACUIX™ ES Series PTZ domes: IndoorIn-ceiling (PAL)Fixed, clear, video over coaxFixed, smoked, video over coax18X colour, video over coax, video over UTP, 8 contact inputs, smoked18X colour, video over coax, 2 contact inputs, smoked18X colour, video over coax, 2 contact inputs, clear18X colour, video over coax, video over UTP, 8 contact inputs, clearIndoorSurface/pendant (PAL)Fixed, video over coax, clearFixed, video over coax, smoked18X colour, video over coax, 2 contact inputs, smoked18X colour, video over coax, video over UTP, 8 contact inputs, clear18X colour, video over coax, video over UTP, 8 contact inputs, smoked18X colour, video over coax, 2 contact inputs, clearOutdoor Clear dome (PAL)36X WDR TDN, video over coax, video over UTP, 8 contact inputs36X WDR TDN, video over coax, 2 contact inputs26X WDR TDN, video over coax, 2 contact inputs26X WDR TDN, video over coax, video over UTP, 8 contact inputs18X WDR TDN, video over coax, 2 contact inputs, clear18X WDR TDN, video over coax, video over UTP, 8 contact inputsOutdoorSmoke dome (PAL)36X WDR TDN, video over coax, video over UTP, 8 contact inputs36X WDR TDN, video over coax, 2 contact inputs26X WDR TDN, video over coax, 2 contact inputs26X WDR TDN, video over coax, video over UTP, 8 contact inputs18X WDR TDN, video over coax, 2 contact inputs, clear18X WDR TDN, video over coax, video over UTP, 8 contact inputs

1/4 inch, Colour, 460, Outdoor, 24 V AC, 48 (wide end) to 2.8 (tele end), Back Light Compensation, Auto Gain Control, White Balance, 1/50 ~ 1/10,000, > 50dB, Internal/external line lock, PAL, 8, 15 W, 0 ~ 40, 0 ~ 93

1/4 inch, Colour, 460, Outdoor, 24 V AC, 48 (wide end) to 2.8 (tele end), Back Light Compensation, Auto Gain Control, White Balance, 1/50 ~ 1/10,000, > 50dB, Internal/external line lock, PAL, 2, 15 W, 0 ~ 40, 0 ~ 93

1/4 inch, Colour, 460, Outdoor, 24 V AC, 48 (wide end) to 2.8 (tele end), Back Light Compensation, Auto Gain Control, White Balance, 1/50 ~ 1/10,000, > 50dB, Internal/external line lock, PAL, 8, 15 W, 0 ~ 40, 0 ~ 93

1/4 inch, Colour, 460, Outdoor, 24 V AC, 48 (wide end) to 2.8 (tele end), Back Light Compensation, Auto Gain Control, White Balance, 1/50 ~ 1/10,000, > 50dB, Internal/external line lock, PAL, Built-in IR LED, 2, 15 W, 0 ~ 40, 0 ~ 93

1/4 inch, Colour, 460, Outdoor, 24 V AC, 48 (wide end) to 2.8 (tele end), Back Light Compensation, Auto Gain Control, White Balance, 1/50 ~ 1/10,000, > 50dB, Internal/external line lock, PAL, 8, 15 W, 0 ~ 40, 0 ~ 93

1/4 inch, 460, Outdoor, 24 V AC, 48 (wide end) to 2.8 (tele end), Back Light Compensation, Auto Gain Control, White Balance, 1/50 ~ 1/10,000, > 50dB, Internal/external line lock, PAL, 2, 15 W, 0 ~ 40, 0 ~ 93

1/4 inch, 460, Outdoor, 24 V AC, 48 (wide end) to 2.8 (tele end), Back Light Compensation, Auto Gain Control, White Balance, 1/50 ~ 1/10,000, > 50dB, Internal/external line lock, PAL, 2, 15 W, 0 ~ 40, 0 ~ 93

1/4 inch, 460, Outdoor, 24 V AC, 48 (wide end) to 2.8 (tele end), Back Light Compensation, Auto Gain Control, White Balance, 1/50 ~ 1/10,000, > 50dB, Internal/external line lock, PAL, 8, 15 W, 0 ~ 40, 0 ~ 93

1/4 inch, Colour, 460, Outdoor, 24 V AC, 48 (wide end) to 2.8 (tele end), Back Light Compensation, Auto Gain Control, White Balance, 1/50 ~ 1/10,000, > 50dB, Internal/external line lock, PAL, 8, 15 W, 0 ~ 40, 0 ~ 93

1/4 inch, 460, Outdoor, 24 V AC, 48 (wide end) to 2.8 (tele end), Back Light Compensation, Auto Gain Control, White Balance, 1/50 ~ 1/10,000, > 50dB, Internal/external line lock, PAL, 15 W, 0 ~ 40, 0 ~ 93

1/4 inch, 460, Outdoor, 24 V AC, 48 (wide end) to 2.8 (tele end), Back Light Compensation, Auto Gain Control, White Balance, 1/50 ~ 1/10,000, > 50dB, Internal/external line lock, PAL, 15 W, 0 ~ 40, 0 ~ 93

>460, indoor, 24 V AC @ 50/60 Hz, 12 V DC, class 2 LPS, 48 (wide end) ~ 2.8 (tele end), Back Light Compensation, White Balance, 1/50 ~ 1/10,000s, >50 dB, internal/externl line lock, PAL, 15W peak, 152x206.4, 227, 0 ~ 40, 0 ~ 93, non-condensing

>530, Outdoor, 24 V AC @ 50/60 Hz, 12 V DC, 57.8 (wide end) to 1.7 (tele end), Back Light Compensation, Auto Gain Control, White Balance, 1/1 to 1/10,000s, > 50dB, Internal/external line lock, PAL, 40 W peak; 15 W idle (22W with heater on), 194.6x255.5, 330, -20 ~ +50, 0 ~ 100, non-condensing IP66 rated enclosure

Variable Focus, Indoor, 12 V DC, 24 V AC, Back Light Compensation, Auto Gain Control, White Balance, 1/50 ~ 1/100,000s (PAL), 50 dB (AGC off), line lock option, PAL/NTSC, 128x194, 140, -10 ~ +50, 30 ~ 90 non-condensing

1/3 inch, Colour, 540, 0.6 @ F1.3 lux, Fixed Focus, Indoor, In-ceiling, Pendant, Surface mount, 12 VDC, 24 VAC, 2.8 ~ 10, Back Light Compensation, Auto Gain Control, White Balance, 1/50 ~ 1/10,000, 50, Internal, Line lock, PAL, 3.5W, 152 x 206.4, 1,400, -10 ~ 50, 0 ~ 90

1/3 inch, Colour, 540, 0.6 @ F1.3 lux, Fixed Focus, Indoor, In-ceiling, Pendant, Surface mount, 12 VDC, 24 VAC, 2.8 ~ 10, Back Light Compensation, Auto Gain Control, White Balance, 1/50 ~ 1/10,000, 50, Internal, Line lock, PAL, 3.5W, 152 x 206.4, 1.4, -10 ~ 50, 0 ~ 90

1/3 inch, Colour, 540, 0.6 @ F1.3 lux, Fixed Focus, Indoor, In-ceiling, Pendant, Surface mount, 12 VDC, 24 VAC, 2.8 ~ 10, Back Light Compensation, Auto Gain Control, White Balance, 1/50 ~ 1/10,000, 50, Internal, Line lock, PAL, 3.5W, 152 x 206.4, 1,400, -10 ~ 50, 0 ~ 90

1/4 inch, Colour, >460, 1.0 @ F1.4 lux, Indoor, In-ceiling, Pendant, Surface mount, 12 VDC, 24 VAC, Back Light Compensation, Auto Gain Control, White Balance, 1/50 ~ 1/10,000, >50, Internal / External Line Lock, PAL, x12, 15 W, 152 x 206.4, 0 ~ 40, 0 ~ 93

1/4 inch, Colour, >460, 1.0 @ F1.4 lux, Indoor, In-ceiling, Pendant, Surface mount, 12 VDC, 24 VAC, Back Light Compensation, Auto Gain Control, White Balance, 1/50 ~ 1/10,000, >50, Internal / External Line Lock, PAL, x12, 15 W, 152 x 206.4, 0 ~ 40, 0 ~ 93

1/4 inch, Colour, >460, 1.0 @ F1.4 lux, Indoor, In-ceiling, Pendant, Surface mount, 12 VDC, 24 VAC, Back Light Compensation, Auto Gain Control, White Balance, 1/50 ~ 1/10,000, >50, Internal / External Line Lock, PAL, x12, 15 W, 152 x 206.4, 0 ~ 40, 0 ~ 93

>460, indoor, 24 V AC @ 50/60 Hz, 12 V DC, class 2 LPS, 48 (wide end) ~ 2.8 (tele end), Back Light Compensation, White Balance, 1/50 ~ 1/10,000s, >50 dB, internal/externl line lock, PAL, 15W peak, 152x206.4, 227, 0 ~ 40, 0 ~ 93, non-condensing

>460, indoor, 24 V AC @ 50/60 Hz, 12 V DC, class 2 LPS, 48 (wide end) ~ 2.8 (tele end), Back Light Compensation, White Balance, 1/50 ~ 1/10,000s, >50 dB, internal/externl line lock, PAL, 15W peak, 152x206.4, 227, 0 ~ 40, 0 ~ 93, non-condensing

>460, 24 V AC, 48 (wide end) ~ 2.8 (tele end), Back Light Compensation, White Balance, 1/50 ~ 1/10,000s, >50 dB, internal/externl line lock, PAL, 15W peak, 152x206.4, 227, 0 ~ 40, 0 ~ 93, non-condensing

1/4 inch, Colour, >460, 1.0 @ F1.4 lux, Indoor, In-ceiling, Pendant, Surface mount, 12 VDC, 24 VAC, Back Light Compensation, Auto Gain Control, White Balance, 1/50 ~ 1/10,000, >50, Internal / External Line Lock, PAL, x12, 15 W, 152 x 206.4, 0 ~ 40, 0 ~ 93
