From ADSL to 4G, from Resistive Touch Screens to OLED, electronic products are in pursuit of higher and higher definitions. Starting from the D1 resolution, video surveillance products have now reached 4K, which is 25 times higher. However, the development speed was held back by the increasing need for storage space and bandwidth brought by higher resolution video.
Combining U-Code and H.265
Taking the 4K camera as an example, the common industry standard bitrates is 8Mbps for H.264. Hence 591GB of storage space is needed for 24 hours video monitoring for 7 days; much larger than the storage space in a PC’s hard disk. Meanwhile, the camera needs no less than 20Mbps bandwidth to support both live view stream and storage stream computing. It’s much higher than the global average wire speed, and only slightly less than South Korea, which has the fastest wire speed in the world.
To balance the need for HD surveillance and corresponding storage and bandwidth cost, and to keep pace with the development from H.264 to H.265, Uniview makes an enormous effort to exploit HEVC coding standard, and finally invented the patent coding technique U-Code. The combination of U-Code and H.265 is the unique technology - Ultra 265. Ultra 265 is an end to end solution which can save up to 95% storage space and 75% storage cost, brings great convenience to users.
Scenes containing interesting information can be preserved, while other relatively static areas can be squeezed |
Deep compression technology
Unlike conventional video compression technologies which try to reduce storage costs by sacrificing resolution and frame rate indiscriminately, U-Code chooses to use “IRP” (Intelligent Region Perception) to detect motion in each frame. Hence, scenes containing interesting information could be preserved while the other relatively static area such as lawns, or white walls could be squeezed to save storage.
In order to reduce bandwidth, U-Code will stretch GOP (Group Of Pictures). Meanwhile, it uses V.I (virtual I frame) to ensure that media has a key frame that contains critical information so that the NVR can run the Frame Accurate Search and Quick Playback. This is called EF tech, or “Enhanced Frame”. By combining U-Code and H.265, Ultra 265 can squeeze up to 95% bandwidth and storage space.

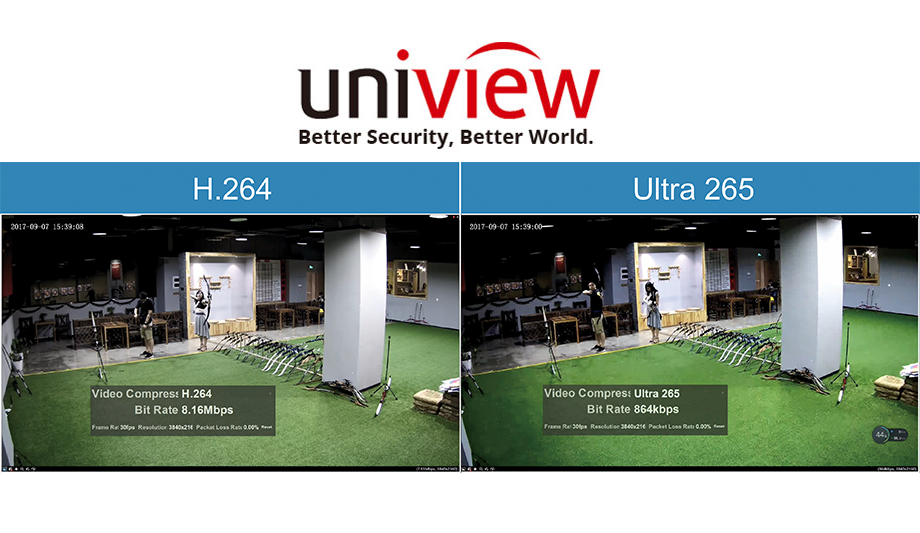

Comparison between H.264 and Ultra 265
Under the same configuration, Ultra 265 only costs one hard disk to store the same video record which needs four hard disks under H.264, saving 75% storage cost. Customers would benefit from both storage cost and deployment cost from Ultra 265.
Moreover, Ultra 265 retains the image quality enhancement brought by H.265, reduces the image distortion caused by code compression to a great extent, optimises image blur, trailing smear and rough of stroke edge, and improves the accuracy of VCA. Besides the advancements list above, Ultra 265 also breaks the bottleneck of HD resolution. It enables customers to make full use of Super HD surveillance products like 4K under current bandwidth and storage deployment. Ultra 265 is the best choice for customers to enter into the era of Super HD.
