Heason Technology’s custom stand-alone motion system delivers precise speed control for novel dip coating process

With its own in-house motion system design and integration service, and distribution partnerships with globally renowned motion control component suppliers, Heason Technology has the capability and a strong reputation for application customised motion control solutions.

Typically including precision-grade positioning mechanics and advanced motion control hardware and software, these bespoke systems often provide an important part of the enabling technology for innovative manufacturing or research processes.

With the positioning system requirements fulfilled by Heason Technology, the customer can apply its own technological expertise, safe in the knowledge that motion control will not be a limiting factor to project success.

Heason Technology’s motion expertise

A recent example where Heason Technology’s motion expertise played a significant role in a manufacturing project, involved the design and supply of a single-axis servo motor-driven actuator and control system for a novel thin-film dip coating process.

The positioning system required ultra-precise speed control for the withdrawal cycle of a large, heavy and irregular shaped component, in order to ensure a highly uniform and precise coating thickness.

Load variation, a challenging factor

This load variation was a challenging factor for the low-speed control required for the process

The components’ asymmetrically distributed mass and dimensions, combined with the buoyancy effect of the coating fluid, caused a load variation that would result in a significant series of stepped fluctuations in the reflected inertia seen at the motor, as the product was vertically retracted from the coating bath. This load variation was a challenging factor for the low-speed control required for the process.

The customer specified a stand-alone system, where an operator could simply programme the actuator to a load position and adjust the dipping and retraction speed with recordable values, to maintain a consistent and repeatable coating thickness over the process.

Stand-alone motion system

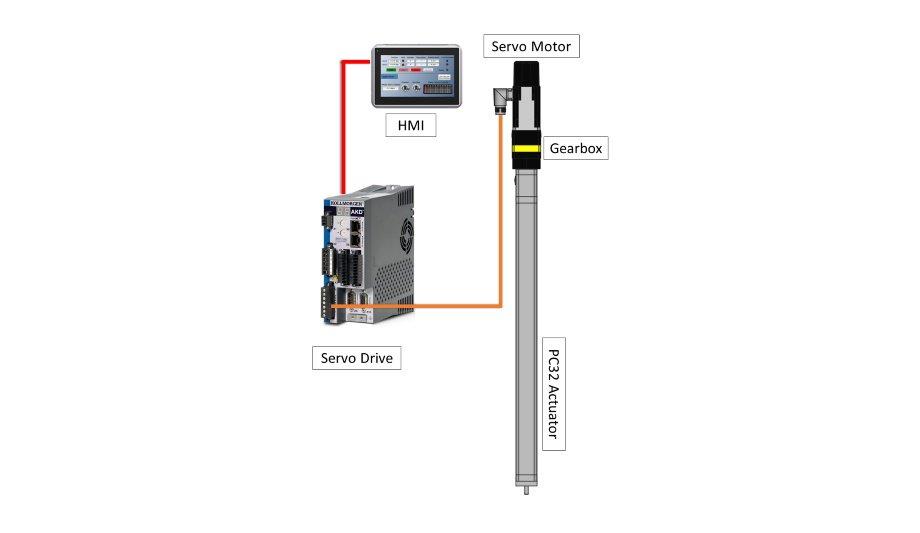

Heason Technology delivered a 700 mm stroke length actuator, driven by a servo motor fitted with an absolute encoder for precise closed loop speed and position control from a servo drive.

The speed control parameters were programmed between the servo drive and an HMI, to complete the autonomous system. The servo drive chain included a planetary reduction gearbox to achieve the low speed required and a holding brake ensured safety for the vertically mounted system.

Thomson PC32 series actuator

The specific choice of components for the stand-alone system fell to a PC32 series actuator from Thomson, a globally renowned linear motion component manufacturer and a valued partner for Heason Technology, over several years. Its PC32 series actuator features a smooth IP65 rated aluminium housing protecting a precision ball screw, while a stainless-steel extension tube and rod adapter perfectly suit the environment and load mounting arrangement for the dip-coating process.

A 7:1 ratio precision grade planetary gearbox, also from Thomson, is included to reduce the linear speed within the set range, as well as help smooth speed fluctuations, by reducing the effect of reflected motor inertia, due to the irregular load distribution of the component during the process.

Driven by Kollmorgen AKM21E servo motor

The actuator assembly is driven by a Kollmorgen AKM21E servo motor

The actuator assembly is driven by a Kollmorgen AKM21E servo motor, complete with integral holding brake and absolute multi-turn encoder. Heason Technology enjoys a long-term distribution partnership and several years’ experience with Kollmorgen, as a UK certified partner and silver-status supplier for its industrial automation systems, servo motors and drives.

With precise servo control from Kollmorgen’s AKD BASIC series servo drive through its built-in BASIC programmable motion and machine software, the digital drives’ ultra-fast 62.5 microsecond servo update rate constantly maintains the exact desired motor speed, despite the torque variation due to the irregular load.

Kollmorgen AK12G series 7” HMI touchscreen

A Kollmorgen AK12G series 7” HMI touchscreen, programmed with Kollmorgen Visualisation Builder software allows full stand-alone operator control of the coating process. As an absolute encoder is used for servo feedback, homing the actuator to a loading position is a simple command. The operator then enters a retraction speed value into the graphic panel and a sequence is called from the intelligent servo drive, delivering and retracting the component at the desired speed.

Heason Technology provided the complete system pre-programmed and fully operational, based on the speed range and speed tolerance specifications supplied for the dip coated component, following extensive in-house testing, before delivery to the customer. The motion system was supplied with operation manuals and servicing information.

Heason Technology

Heason Technology supplies and supports a wide range of linear motion components from Kollmorgen, Thomson and other major motion equipment suppliers.

As a system integrator with its own in-house design and system integration capability, the motion control specialist offers single components including stepper and servo motors, intelligent drives, motion controls and positioning mechanics, through to multi-axis motion-centric systems that include bespoke mechanics complete with drive electronics, automation controls, industrial bus interfaces and software.
