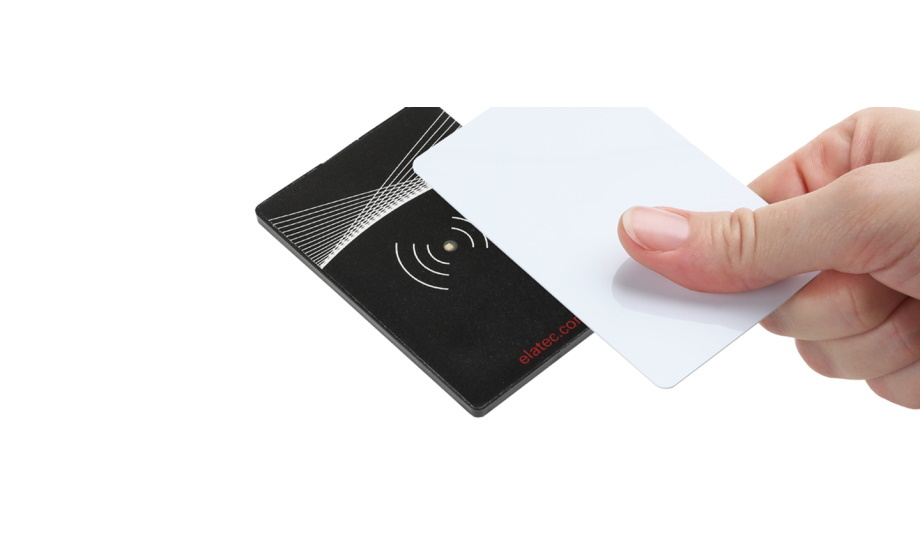

ELATEC is proud to present a new addition to its TWN4 multi-technology RFID reader product family. The TWN4 Slim is a very flat reader, smaller than a credit card. It supports all common RFID technologies as well as smartphone ident solutions with NFC and BLE.
The main application for the TWN4 Slim is integration into devices, particularly ones in the field of secure printing. It is also suitable for many other ID solutions if a highly compact reader is required for integration. It also impresses as a stand-alone device.
Secure printing solution
Due to its sleek, elegant design, the TWN4 Slim is perfect for many application cases: This extremely small reader can, for example, be perfectly integrated into a printer to provide users with a powerful secure printing solution. The TWN4 Slim measures only 65.5 x 45.5 mm and is therefore smaller than a credit card. It’s also only four millimetres thick.
This small device also places a big emphasis on service and maintenance
Thanks to its compact design, the product can very easily be applied in other industrial sectors. It features integrated antennas for HF, LF, and Bluetooth Low Energy (BLE) as well as a Micro USB interface. An RGB LED and a tone generator create feedback for the authentication process. This small device also places a big emphasis on service and maintenance: Firmware updates can be conveniently executed via the USB interface.
Enhanced security requirements
Elatec offers various USB cable sets and adapters for integration. Along with that, a SAM slot is provided for applications with enhanced security requirements. Manufacturers that want to implement an RFID authentication solution in their product with the help of the TWN4 Slim will not only benefit from the reader’s extraordinarily compact design, but also from its flexibility with regard to the customer’s desired solution.
Using the Elatec TWN4 tool, customers can thoroughly configure the TWN4 Slim or even create their own applications in the reader. Since the TWN4 Slim covers all common RFID technologies in the frequency ranges 125 kHz as well as 13.56 MHz, no different device versions need to be maintained. Supporting NFC and BLE means that even mobile phones can be used in addition to RFID transponders.
