Dortronics Systems Inc., an industry pioneer in off-the-shelf and customised door control solutions, is showcasing their intelligent, fully integrated, and user-configurable PLC interlock Controllers at ISC West 2022 (booth #2036).
Dortronics PLC Interlock Controllers, otherwise known as mantraps, provide systems designers and installers with highly cost-effective and versatile door control solutions for a wide range of commercial and industrial applications.
Ease of installation and integration
“Our 48900 and 48500 Series Interlock Controllers are part of a strong portfolio of intelligent mantrap solutions that combine the latest features and high performance with extreme versatility and cost-efficiency,” said Bryan Sanderford, National Sales Manager, Dortronics Systems, Inc.
"Dortronics interlock controllers are designed for ease of installation and implementation and integrate well with industry-leading third-party access control systems."

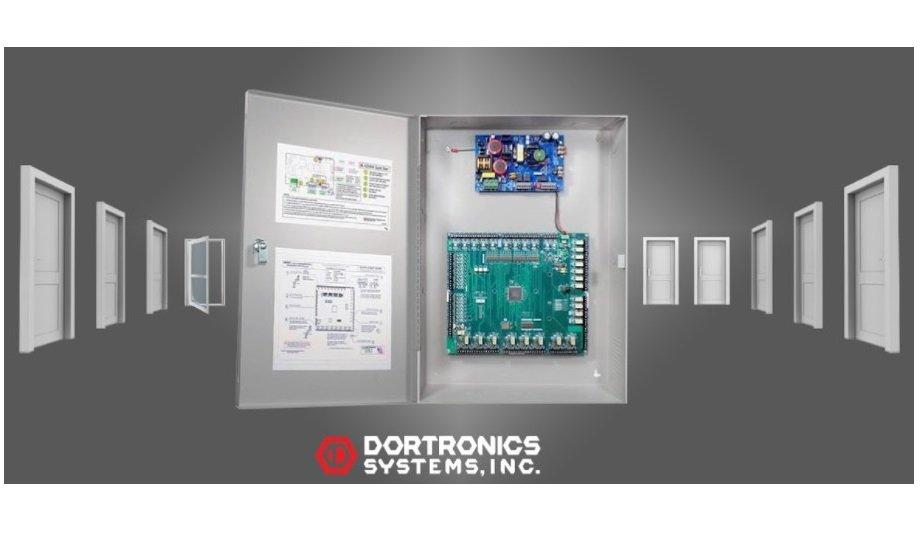

48900 Series Interlock Controller
48900 Series Interlock Controller integrates with virtually any access control system utilising dry contacts
The 48900 Series Interlock Controller is a cost-effective solution for implementing door interlock and mantrap systems with up to nine doors. The fully integrated, single-board solution provides installers with complete programming control of all operating and configuration options without the need and expense of complex software.
The 48900 Series Interlock Controller integrates with virtually any access control system utilising dry contacts. Each door terminal has a form-C SPDT dry contact output to mirror door status back to an access control panel or remote console.
Three individual timing sequences
The feature-packed unit also provides outputs for traffic lights, door violation alarms, and provides three individual timing sequences for propped door time, emergency override unlock, and request-to-exit unlock time.
For added installation versatility, the 48900 Series PLC interlock Controller can be paired with a 4-, 6-, or 10-Amp UL 294 power supply that includes a Fire Alarm connection for emergency egress and can provide power to operate maglocks, electric strikes, and traffic lights. The controller is also available without the power supply and enclosure for connection to an existing 12-24VDC power source.
Display at ISC West 2022
Additional features include twelve inputs for door status, request for access, interlock override, and emergency unlock
Dortronics will also be showcasing the 48500 Series Door Interlock Controller at ISC West 2022 which accommodates up to five doors, including doors with automatic openers.
The unit is easily configured and features adjustable timers for propped door time, panic release unlock time, and REX unlocks time. Additional features include twelve inputs for door status, request for access, interlock override, and emergency unlock.
Additional features
The 48500 Series Door Interlock Controller’s 22 outputs control door locks (fail-safe or fail-secure), traffic lights, and mirror door status with alarm outputs.
Additional features include a watchdog circuit to monitor operation, LED input/output status indication, and voltage spike/surge protection. The 4800 Series is available as a controller board only or with a 4-amp power supply. All Dortronics Door Interlock Controllers are proudly manufactured in the U.S.A.
