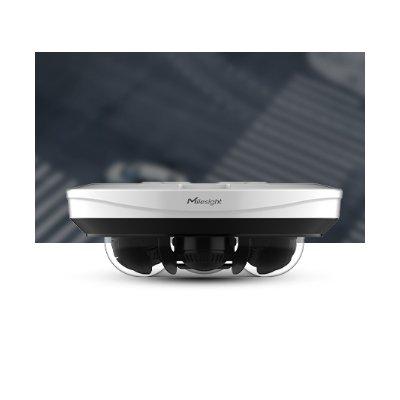

Milesight 4x5MP AI Multi-Directional Camera: Enhanced Coverage, Reduced Costs
Product Profile
The Milesight multi-directional camera replaces up to four traditional cameras, reducing device count, VMS licenses, and maintenance costs.
Multi-Directional View
Each sensor is equipped with a motorized 3-9mm focus lens on a 3-axis circular track, delivering 360° coverage. The camera features six IR-cut filters and Super WDR technology, ensuring optimal image quality in varying lighting conditions. Additionally, each lens supports corridor mode for clear, high-quality images across different environments.
Comprehensive Integration
The AI Multi-Directional Network Camera includes Edge AI analytics and integrates seamlessly with Milesight VMS Enterprise. It allows unified management of up to four front-end cameras, ensuring data consistency and reducing management complexity. The system also supports stream management for all four cameras under a single license, cutting costs and simplifying operations.
360° Flexible Rotation
The camera's body pivots +120° horizontally, with an additional +30° swivel on the lens. Vertically, it tilts from 15° to 105°, and the lens can rotate +90°, offering flexible positioning for optimal angle capture.
Efficient Structural Design
The modular design allows for quick, tool-free installation with a snap-fit mechanism. Built-in short-circuit protection ensures safety and reliability, resulting in cost savings and long-term durability.
Technical Specification
| Make | Milesight |
|---|---|
| Manufacturer | Milesight |
| Category | CCTV>IP cameras |
| Model code | MS-C5321-FPE |
| Chip Inch Size | 1/2.8 inch |
| Colour Type | Colour / Monochrome |
| Resolution | 4x5MP resolution |
| Sensitivity Lux | Color: 0.005Lux@F1.6 ; B/W: 0Lux with IR on |
| Electrical Specifications |
Voltage: 12 V DC, PoE Power Consumption: 20W (12 V DC) ; 23W (PoE) |
| Motion Activated | Yes |
| Focal Length mm | 3 ~ 9 mm |
| Mount Type | Wall, Pendant, Pole, Corner |
| Wide Dynamic Range | Yes |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter Range | 1/100000s~1s |
| S/ N (Signal/ Noise) Ratio dB | >55dB |
| Compression Type | H.265 +/H.265(HEVC)/H.264 +/H.264/MJPEG |
| Network Properties | Network Protocols: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP,NTP,SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS1.2 |
| Physical Specifications |
Weight g: 3100 Dimensions mm: φ280 x 97 |
| Environmental Specifications |
Protection: IP66, IK10 Operating Temperature oC: -40 ~ +60 C (-40 ~ +140 F) Operating Humidity %: 0 ~ 95 |
| Additional info |
|
| Download PDF version Download PDF version | |
