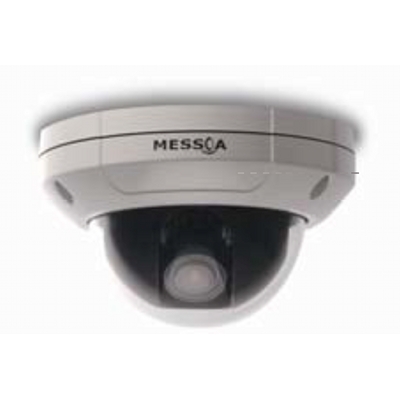

Messoa SDF416U 4X vari-focal dome, wide dynamic range, vandal-proof camera
Technical Specification
Features:
- Make: Messoa
- Model code: SDF416U
- Colour Type: Colour / Monochrome
- Resolution TVL: 560
- Sensitivity lux: 0.05 lux
| Make | Messoa |
|---|---|
| Manufacturer | MESSOA Technologies Inc. |
| Category | CCTV>Dome cameras |
| Model code | SDF416U |
| Colour Type | Colour / Monochrome |
| Resolution TVL | 560 |
| Sensitivity lux | 0.05 lux |
| Dome Type | Variable Focus |
| Electrical Specifications |
Voltage: 12 V DC / 24 V AC Power Consumption: 4.5 W |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | 1/60 |
| S/ N (Signal/ Noise) Ratio dB | 50 |
| Synchronisation | Internal, Line Lock |
| Signal Mode | PAL, NTSC |
| Video Output | 1 Vp-p, 75 Ohms |
| Zoom Ratio | x4 |
| Physical Specifications |
Dimensions mm: 150 x 132 Weight g: 1,150 |
| Environmental Specifications |
Operating Temp oC: -10 ~ +50 Operating Humidity %: 30 ~ 90 Protection: IP67 |
