Hikvision eSSD technology - Small in size, powerful in design

Product Profile

What’s eSSD technology?
Hikvision eSSD technology, the new-gen tech for better storage. This technology allows the SSD to be embedded into the DVR or NVR, making the entire device design more compact, while eliminating the cumbersome steps of installing hard disks. Small size, high stability storage, explore the new possibilities with Hikvision eSSD technology.

What does new-gen eSSD make possible?
Compact, embedded SSD
• Built-in and integrated into the system, less vulnerable to physical damage
• Ready-to-use convenience, no extra efforts on hard drive installation

Expandable storage
Choose from a variety of storage options, up to 2 TB capacity for all your storage needs.

Removable eSSD, easy maintenance
Upgrade or replace storage effortlessly. Maintenance is more accessible and manageable for installers.

Eco-friendly, low-power consumption
Hikvision eSSD is an all-electronic structure that eliminates the need for motors and disk rotation, resulting in significant energy savings.

Read more

Technical Specification

Make Hikvision
Manufacturer Hikvision
Category CCTV>Network video recorders (NVRs)

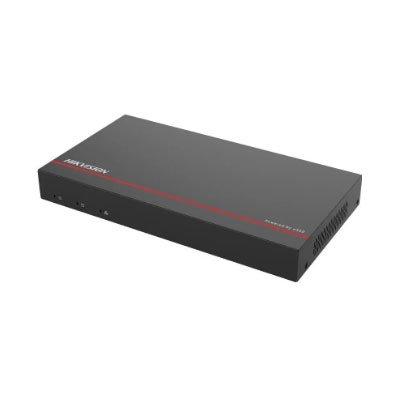

Model code DS-E08NI-Q1/8P SSD NVR
Recording Mode Real Time
Video inputs 8
Hardware solution Yes
Inbuilt multiplexer Yes
Type of multiplexer functions Recording, Playback
Storage capacity 2 TB
Secondary storage USB
Storage rate 25 fps
Resolution 4 MP
PTZ control Yes
Audio recording properties G.711ulaw/G.711alaw/G.722/G.726
Instantaneous playback Yes
Electrical Specifications Voltage: 48 V DC
Power consumption (W): ≤ 10 (with SSD)
Physical Specifications Weight (kg): 0.5
Dimensions (mm): 225 x 122 x 27
Environmental Specifications Operating temperature (°C): -10 ~ 50 C (14 ~ 122 F)
Operating humidity (%): 10 ~ 90
Additional info
  • Powered by eSSD technology
  • Low power consumption
  • H.265+/H.265/H.264+/H.264 video compression
  • Up to 60 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
  • Up to 8-ch network camera inputs
  • Up to 4-ch 1080p decoding capability
Download PDF version Download PDF version
