Hikvision PTZ Cameras Optimised with 7 Advanced Technologies for Superior Surveillance
Product Profile
Hikvision’s PTZ cameras incorporate seven advanced technologies that optimize video monitoring performance, ensuring stability, precision, and efficiency in a variety of challenging environments. These innovations, such as image stabilization, rapid focusing, and dual-view capabilities, are designed to address the real-world needs of security professionals who require reliable and high-performance solutions for complex surveillance tasks.
7 Key Innovations in Hikvision’s PTZ Cameras:
- Image Stabilization:
Hikvision’s Optical Image Stabilization (OIS) and Gyroscope Image Stabilization (GIS) work together to eliminate the effects of camera vibration, which can occur in areas with high winds or when mounted on moving structures like bridges. OIS stabilizes images by adjusting the lens, while GIS counteracts motion digitally, ensuring clear, stable footage even at high zoom levels. - Fog Penetration:
Hikvision’s defog technology is designed to address visibility challenges in foggy conditions. In light fog, the camera uses an Algorithmic Defog mode to enhance image clarity and restore color. In denser fog, the Optical Defog mode uses infrared light to penetrate the fog and produce high-quality black-and-white footage with minimal noise, maintaining visibility in difficult weather. - Rapid Focusing:
Hikvision’s Rapid Focus technology enables fast and accurate focusing, even when zooming in on distant objects. The system creates a 3D model of the camera’s environment, pre-calculating focus points and zoom ratios. When needed, the camera quickly adjusts focus, reducing the time required to capture sharp images, even when zooming in or out. - Auto Tracking:
In situations where it’s essential to track moving objects, Hikvision’s Auto Tracking 3.0 technology offers a powerful solution. Using Automatic Number Plate Recognition (ANPR), the camera can identify and follow specific vehicles or objects, continuously adjusting its pan and tilt to keep the target in focus, even if it’s temporarily obstructed by other objects in the scene. - Dual-View Capability:
Hikvision’s TandemVu PTZ cameras address the issue of missed coverage when the camera is zoomed in or panned. These cameras feature dual lenses that provide both panoramic and close-up views simultaneously. Smart Linkage technology ensures that when an object is detected in the panoramic view, the PTZ lens automatically zooms in to track and identify it. This dual-view system ensures comprehensive coverage without blind spots. - Durable Slip Ring:
PTZ cameras are subject to constant movement, which can lead to wear and tear on their mechanical components. Hikvision’s Dual-Track Slip Ring enhances durability by offering redundancy, ensuring that the camera continues to function even if one track is damaged. The gold-plated tracks reduce friction and wear, providing up to 10 years of reliable operation, even in high-demand environments. - Pan-Tilt Correction:
In high-traffic or constantly shifting environments, such as busy intersections, PTZ cameras may experience lens drift after extended use. Hikvision’s Smart Pan-Tilt Correction technology automatically detects and corrects any drift in the camera’s direction, maintaining precise coverage and accurate monitoring over time. This ensures the camera remains focused on the correct areas, even during prolonged operation.
These seven innovations make Hikvision’s PTZ cameras highly adaptable and reliable in a range of challenging surveillance environments. Whether it’s stabilizing images in windy conditions, tracking moving vehicles, or ensuring clear visibility in fog, these advanced features work together to deliver superior performance, reduce maintenance, and enhance operational efficiency, making Hikvision PTZ cameras a trusted choice for security professionals.
Technical Specification
| Make | Hikvision |
|---|---|
| Manufacturer | Hikvision |
| Category | CCTV>IP Dome cameras |

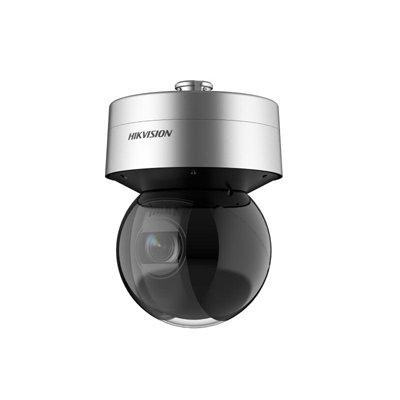

| Model code | DS-2DF7A436IXG-EL(Y) |
| Series | Hikvision Ultra Series |
| Chip Inch Size | 1/1.8 inch |
| Colour Type | Colour / Monochrome |
| Resolution TVL | 4MP |
| Megapixel | Yes |
| Dome Type | PTZ |
| Sensitivity lux | Colour: 0.0005 Lux @ (F1.2, AGC ON),B/W: 0.0005 Lux @ (F1.2, AGC ON),0 Lux with IR |
| Pan Speed o/ sec | Configurable from 0.1° to 550°/s, preset speed: 550°/s,Up to MAX 700 o/ sec pan speed |
| Tilt Speed o/ sec | Configurable from 0.1° to 300°/s, preset speed 300°/s,Up to MAX 300 o/ sec tilt speed |
| Electrical Specifications |
Voltage: 42.5 ~ 57V / 36 V DC / PoE Power Consumption: Max. 90 W |
| Focal length | 6 ~ 216 mm |
| Presets | 300 |
| Compression | H.265||H.264||MJPEG |
| Back Light Compensation | Yes |
| Electronic Shutter range | 1/30 s to 1/30,000 s |
| S/ N (Signal/ Noise) Ratio dB | ≥52dB |
| Video Output | CVBS: 1.0 V[p-p]/75 Ω, PAL/NTSC, BNC connector |
| Zoom Ratio | 36x optical zoom and 16x digital zoom |
| Network Properties |
Interface: RJ45, self-adaptive 10M/100M Ethernet port Network Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, R TP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets |
| Physical Specifications |
Dimensions mm: Ø214.95 x 297.1 Weight g: 5000 |
| Environmental Specifications |
Operating Temp oC: -40 ~ +70 C (-40 ~ +158 F) Operating Humidity %: ≤95 Protection: IP67, IK10 |
| System Requirements | Web Browser: IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+ |
| Additional info |
|
| Download PDF version Download PDF version | |
