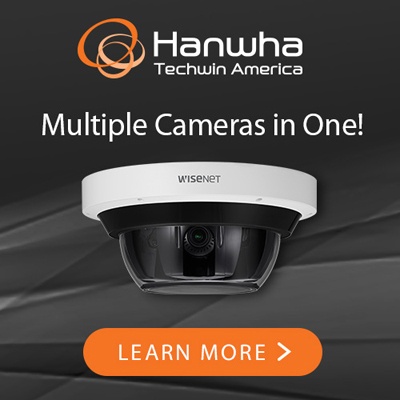

Hanwha PNM-9085RQZ multi-sensor camera

Product Profile

Hanwha’s PNM-9085RQZ multi-directional camera features motorized varifocal lenses for precise control of focal length, angle of view and zoom for each direction. Each sensor supports remote PTRZ (pan, tilt, rotate, zoom) control for efficient installation and easy adjustment. The 20MP (5MP x 4) PNM-9085RQZ features built-in IR illumination for each sensor. The PNM-9085RQZ allows users to quickly change the camera to 180/270/360 degree configuration as well as custom presets, merging an element of multi-imagers and PTZ presets.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Technical Specification

Make	Hanwha Vision
Manufacturer	Hanwha Vision Europe (formerly Hanwha Techwin Europe)
Category	CCTV>IP Dome cameras
Model code	PNM-9085RQZ
Series	WISENET P SERIES
Chip Inch Size	1/2 inch
Colour Type	Colour / Monochrome
Resolution TVL	20MP
Megapixel	Yes
Dome Type	PTZ
Sensitivity lux	0 ~ 0.11
Indoor/Outdoor	Outdoor
Digital (DSP)	Yes
Electrical Specifications	Voltage: 12 V DC, HPoE Power Consumption: 45W
Focal length	4.13 ~ 9.4mm
Compression	H.265/H.264: Main/Baseline/High, MJPEG
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	2 ~ 1/12,000sec
Zoom Ratio	x2.3
Network Properties	Interface: RJ-45(10/100/1000BASE-T) Network Protocols: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP Image Frame Rate: 30 fps
Physical Specifications	Dimensions mm: ∮315 x 146 Weight g: 5200
Environmental Specifications	Operating Temp ^oC: -40 ~ +55 C (-40 ~ +131 F) Operating Humidity %: < 90 Protection: IP66, IK10, NEMA4X
System Requirements	Operating System: Windows 7, 8.1, 10, Mac OS X 10.13 Web Browser: Google Chrome, MS Explorer 11, MS Edge, Mozilla Firefox (Windows 64-bit only), Apple Safari (Mac OS X only)
Additional info	5MP x 4ch multi-directional camera, using one IP address Motorized PTRZ for easy installation and remote adjustment of entire FoV 30fps@5MP(H.265, H.264) 4.13~9.4mm(2.3x) motorized PTRZ varifocal lens Integrated IR that rotates with camera head, viewable length : 30m H.265, H.264, MJPEG codec, Multi streaming Video analytics, WiseStreamⅡ IP66, IK10, NEMA4X Easy Gangbox mounting installation
