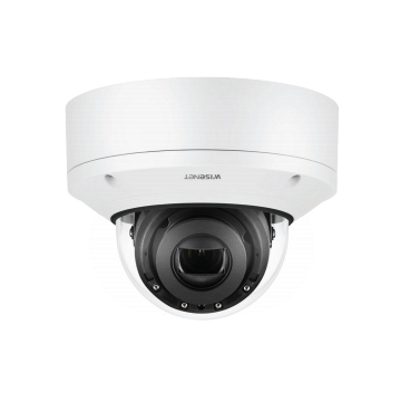

Hanwha Techwin America XND-6081RV 2MP IR network dome camera
Technical Specification
Features:
- Make: Hanwha Vision
- Model code: XND-6081RV
- Series: WISENET X SERIES
- Chip Inch Size: 1/3 inch
- Colour Type: Colour / Monochrome
Additional info:
2 Megapixel resolution 0.015Lux@F1.4 (Colour), 0Lux (B/W, IR LED on) Day & Night (ICR), WDR (150dB / 120dB) Hallway View, WiseStreamII Support Video & audio analytics, Audio playback DIS and shock detection with built-in gyro sensor Modular structure, PoE, 12VDC IP52, IK10
Read more| Make | Hanwha Vision |
|---|---|
| Manufacturer | Hanwha Vision Europe (formerly Hanwha Techwin Europe) |
| Category | CCTV>IP Dome cameras |
| Model code | XND-6081RV |
| Series | WISENET X SERIES |
| Chip Inch Size | 1/3 inch |
| Colour Type | Colour / Monochrome |
| Resolution TVL | 2 MP |
| Megapixel | Yes |
| Dome Type | PTZ |
| Sensitivity lux | 0 ~ 0.015 |
| Digital (DSP) | Yes |
| Indoor/Outdoor | Indoor |
| Electrical Specifications | Voltage: 12 V DC, PoE |
| Focal length | 2.8 ~ 12mm |
| Compression | H.265/H.264 : Main / Baseline / High, MJPEG |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | 2~1 / 12,000s |
| Built-in IR LED | Yes |
| Zoom Ratio | 4.3x |
| Network Properties |
Interface: RJ-45, 10/100BASE-T Network Protocols: Pv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP Image Frame Rate: 30/25 fps , 50/60 fps |
| Physical Specifications |
Dimensions mm: 160 x 125 Weight g: 1450 |
| Environmental Specifications |
Operating Temp oC: -25 ~ +60 C (-13 ~ +140 F) Operating Humidity %: 0 ~ 90 Protection: IP52, IK10 |
| System Requirements |
Operating System: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Web Browser: Google Chrome, MS Explorer11, MS Edge, Mozilla Firefox (Windows 64bit only), Apple Safari (Mac OS X only) |
| Additional info |
|
| Download PDF version Download PDF version | |
