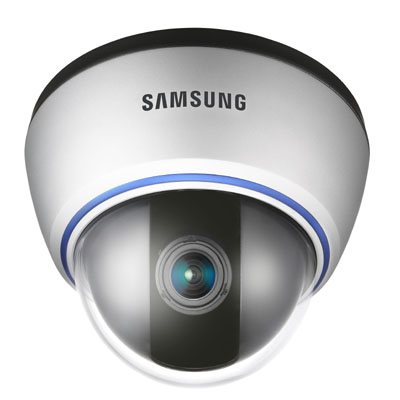

Hanwha Techwin America Techwin SID-560 1/3 High Resolution, WDR Dome CCTV Camera

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Hanwha Techwin America Techwin SID-560 1/3 High Resolution, WDR Dome CCTV Camera

Features:

Make: Hanwha Vision
Previously known as: Samsung
Model code: SID-560
Series: SID Series
Chip Inch Size: 1/3 inch

Additional info:

The SID-560 is a camera with a built-in DSP image engine SVIV chipset, which provides good image quality anytime and anywhere.The SID-560 offers the world's best 560TV lines color resolution, a 128X more powerful WDR function for improved subject recognition in backlight, and clear picture quality without noise for low light level environments.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Hanwha Vision
Manufacturer	Hanwha Vision Europe (formerly Hanwha Techwin Europe)
Previously known as	Samsung
Category	CCTV>Dome cameras
Model code	SID-560
Chip Inch Size	1/3 inch
Colour Type	Colour / Monochrome
Resolution TVL	700
Sensitivity lux	0.001 lux
Dome Type	Variable Focus
Digital (DSP)	Yes
Indoor/Outdoor	Indoor/Outdoor
Mount Type	Ceiling, Wall mount
Electrical Specifications	Voltage: 12 V DC Power Consumption: 3.5 W
Rotation Angles^o	0 ~ 146 (tilt), 0 ~ 340 (pan)
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/60 ~ 1/120,000
S/ N (Signal/ Noise) Ratio dB	52
Synchronisation	Internal
Signal Mode	PAL/NTSC
Video Output	1.0 Vp-p, 75 Ohms
Zoom Ratio	x3.6
Network Properties	Network Protocols: STW, Pelco-D
Physical Specifications	Dimensions mm: 141.2 (Dia) x 105.5 Weight g: 560
Environmental Specifications	Operating Temp ^oC: -10 ~ +50 Operating Humidity %: 20 ~ 80
Additional info	The SID-560 is a camera with a built-in DSP image engine SVIV chipset, which provides good image quality anytime and anywhere.The SID-560 offers the world's best 560TV lines color resolution, a 128X more powerful WDR function for improved subject recognition in backlight, and clear picture quality without noise for low light level environments.
