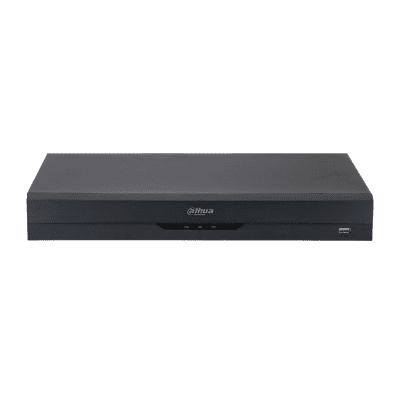

Dahua XVR5208A-4KL-I3 8 Channel Penta-brid 4K-N/5MP 1U 2HDDs WizSense DVR

Product Profile

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

The newly launched XVR5000-4KL-I3 Series features max.full-channel SMD Plus to benefit customers from AI upgrade (The number of channels differs depending on the model. Please refer to the specifications below for information on the number of channels.). This series has been developed to reduce false-alarm rates and the cost of human surveillance, thus bringing great value to customers in search of products with accurate human/vehicle alarm to raise the security level of various indoor and outdoor facilities.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Technical Specification

Make	Dahua Technology
Manufacturer	Dahua Technology Ltd
Category	CCTV>Digital video recorders (DVRs)
Model code	XVR5208A-4KL-I3
Series	WizSense Series
Channels	8 channels
Hybrid IP inputs	16
Alarm I/O	8 in, 3 out
Storage Capacity GB	16,000 GB storage
Image per second (IPS)	25/30 fps storage rate
Compression Type	AI Coding/H.265+/H.265/H.264+/H.264
Resolution	4K-N/5MP resolution
Signal Mode	PAL / NTSC
External Storage	USB
Recording System	HDD
Audio Recording and Properties	Audio Input: 4, RCA (external), 8, BNC (coaxial) ; Audio Output: 1, RCA
Physical Specifications	Dimensions mm: 375 x 289 x 53 Weight kg: 1.64
Electrical Specifications	Voltage: 12 V DC Power Consumption: < 10 W
Environmental Specifications	Operating Temp ^oC: -10 ~ +55 C (14 ~ 131 F) Operating Humidity %: 10 ~ 90
Additional info	H.265+/H.265 dual-stream video compression Supports Full-channel AI Coding Supports HDCVI/AHD/TVI/CVBS/IP video inputs Max 16 channels IP camera inputs, each channel up to 8MP; Max 128 Mbps incoming bandwidth Up to 2 channels video stream (analog channel) Perimeter Protection Up to 8 channels video stream (analog channel) SMD Plus Up to 2 channels video stream (analog channel) human face recognition IoT & POS functionalities
