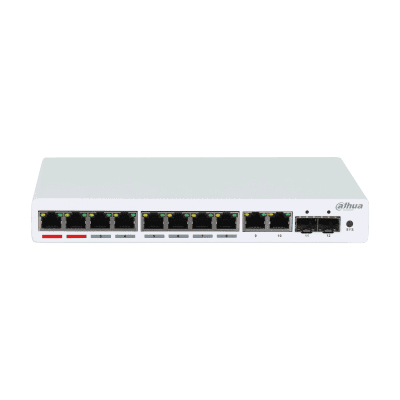

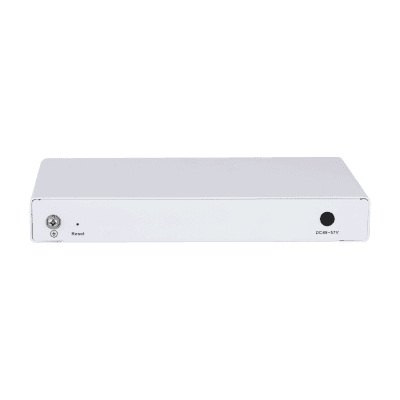

Dahua PFS4212-8GT-110 12-Port Managed Desktop Gigabit Switch with 8-Port PoE

Product Profile

The device is a layer-2 commercial switch. It provides high-performance switching engine and large buffer memory to ensure smooth video stream transmission. With a full-metal and fanless design, the device features great heat dissipation capability on the shell surface, and is able to work in the environment from 10 °C to +55 °C.

It adopts EMC (Electro Magnetic Compatibility) protection design, which meets the Class B standard. With Telnet, WEB management, SNMP (Simple Network Management Protocol) and other functions, the device can be remotely managed. The device can directly connect to iLinks-View.

Read more

Technical Specification

Make Dahua Technology
Manufacturer Dahua Technology Ltd
Category CCTV>CCTV Switchers & Switches
Model code PFS4212-8GT-110
Switcher Type IP
POE Yes
Video inputs / ports 12 channels
Physical Specifications Dimensions mm: 220 x 135 x 30
Weight g: 840
Electrical Specifications Voltage: 48 ~ 57 V DC
Power Consumption: 12 W
Environmental Specifications Operating Temperature oC: -10 ~ +55 C (14 ~ 131 F)
Operating Humidity %: 5 ~ 95
Additional info
  • All-gigabit port design
  • Supports IEEE802.3af, IEEE802.3at, Hi-PoE and IEEE802.3bt (red port) standards
  • 250 m long-distance PoE transmission (10 Mbps)
  • PoE Watchdog
  • Supports STP, RSTP, and MSTP
  • IEEE802.1Q-based VLAN configuration
  • Manual link aggregation and static LACP
  • Desktop mount and wall mount
Download PDF version Download PDF version
