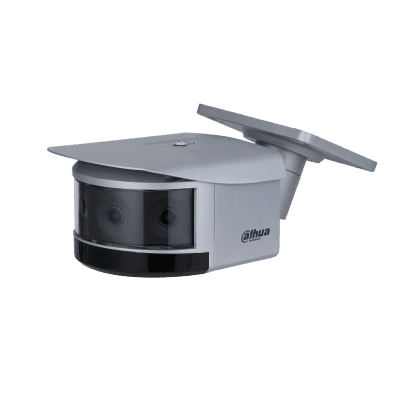

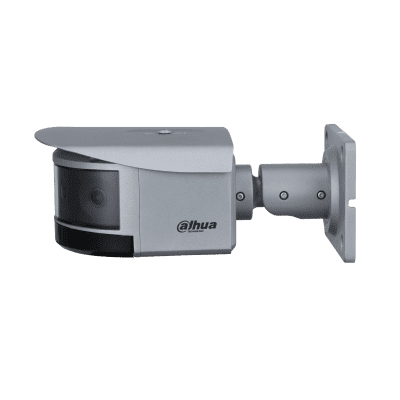

Dahua IPC-PFW8840-A180 4×2MP WizMind Multi-Sensor Panoramic Network IR Bullet Camera
Product Profile
Launched by Dahua Technology, Dahua WizMind is a full portfolio of solutions composed of project-oriented products including IPC, NVR, PTZ, XVR, Thermal and software platform which adopts industry-leading deep learning algorithms. Focusing on customer’s requirements, WizMind provides precise, reliable and comprehensive AI solutions for verticals.
Series Overview
The splicing camera supports a 180° panoramic view and 4-channel hardware splicing to realize HD panoramic surveillance. The camera supports crowd situation analysis, vehicle situation analysis, and perimeter protection. It is widely applied in various scenes such as squares, airports, and traffic.
Functions
Panoramic Splicing
With advanced splicing algorithm, Dahua Panoramic Splicing technology deletes overlapped area and splices multiple images to be a complete panorama. The field of view of the spliced image can be up to 360°, which largely improves surveillance efficiency and user experience. Generally, after splicing, the field of view of four-sensor camera can be 180°, and the field of view of eight-sensor camera can be 360°.
Crowd Density
With deep learning algorithm, Dahua Crowd Density technology can detect the crowd density on the image, and display it on heat map; it can detect people quantity and density in selected area and set threshold. When the number or density is larger or smaller than the threshold, it triggers linkage.
Vehicle Density
With deep learning algorithm, Dahua Vehicle Density technology analyses the vehicle situation in the image, such as vehicle number in selected area. You can set threshold, and when the number is larger or smaller than the threshold, it triggers linkage.
IVS
With advanced video algorithm, Dahua IVS technology supports intelligent functions, such as tripwire and intrusion.
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
Cyber Security
Dahua network camera is equipped with a series of key security technologies, such as security authentication and authorization, access control, trusted protection, encrypted transmission, and encrypted storage, which improve its security defense and data protection, and prevent malicious programs from invading the device.
Protection (IP67, IK10, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes.
IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 cm (Impact energy is 20J).
Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
Technical Specification
| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology Ltd |
| Category | CCTV>IP cameras |
| Model code | IPC-PFW8840-A180 |
| Series | WizMind Series |
| Chip Inch Size | 1/2.8 inch |
| Colour Type | Colour / Monochrome |
| Resolution | 4×2MP resolution |
| Specialist Type | Network |
| Sensitivity Lux | 0.002 |
| Electrical Specifications |
Voltage: 12 V DC, 24 V AC, PoE+ Power Consumption: <16.2W |
| Motion Activated | Yes |
| Focal Length mm | 2.8 |
| Wide Dynamic Range | Yes |
| Picture Elements HxV | 4096 x 1800 |
| Network Properties |
Image Frame Rate: 25 ~ 30 fps Interface: RJ-45 (10/100/1000 Base-T) Network Protocols: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter Range | 1/3 s–1/100,000 s |
| S/ N (Signal/ Noise) Ratio dB | >56 |
| Compression Type | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Physical Specifications |
Weight g: 2860 Dimensions mm: 297 x 169 x 120 |
| Environmental Specifications |
Protection: IP67, IK10 Operating Temperature oC: -40 ~ +60 C (-40 ~ +140 F) Operating Humidity %: <95 |
| System Requirements | Web Browser: IE: IE9 and later, Chrome: 50 and later, Firefox: 48 and later |
| Additional info |
|
| Download PDF version Download PDF version | |
