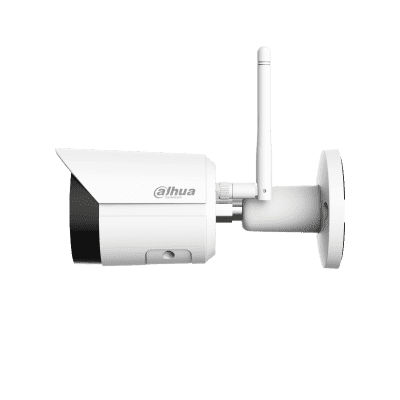

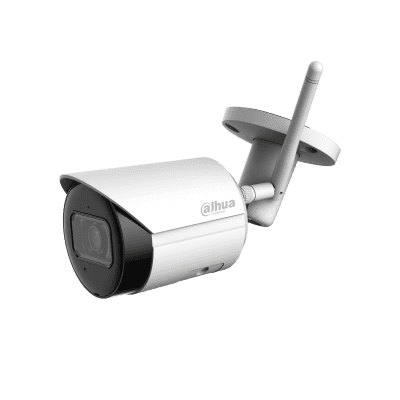

Dahua IPC-HFW1430DS-SAW 4MP IR Fixed-focal Wi-Fi Bullet Network Camera

Product Profile

With features of simple installation, easy operation, and high performance-cost ratio, Dahua Entry series network camera is applicable to small and medium-sized scenes, such as homes/residences, small-sized retail stores, and other small and medium-sized enterprises.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Technical Specification

Make	Dahua Technology
Manufacturer	Dahua Technology Ltd
Category	CCTV>IP cameras
Model code	IPC-HFW1430DS-SAW
Series	Wi-Fi series
Chip Inch Size	1/3 inch
Colour Type	Colour / Monochrome
Resolution	4MP resolution
Specialist Type	Network
Sensitivity Lux	0.025
Electrical Specifications	Voltage: 12 V DC Power Consumption: 2 W
Motion Activated	Yes
Focal Length mm	2.8 mm; 3.6 mm
Wide Dynamic Range	Yes
Picture Elements HxV	2560 x 1440
Network Properties	Image Frame Rate: 25/30 fps Interface: RJ-45 (10/100 Base-T) Network Protocols: IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast;
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter Range	Auto/Manual 1/3 s–1/100,000 s
S/ N (Signal/ Noise) Ratio dB	>56
Compression Type	H.264B; H.264; H.264H; H.265
Physical Specifications	Dimensions mm: 166.2 x 70.0 x 128.6 Weight g: 477.9
Environmental Specifications	Protection: IP67 Operating Temperature ^oC: -40 ~ +60 C (-40 ~ +140 F) Operating Humidity %: ≤95
System Requirements	Web Browser: IE, Chrome, Firefox
Additional info	4-MP 1/3" CMOS image sensor, low luminance, and high definition image.Outputs max. 4 MP (2560 × 1440)@20 fps, and max. supports 3 MP (2304 × 1296)@25/30 fps. H.265 codec, high compression rate, ultra-low bit rate. Built-in IR LED. SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage evironments. DWDR, 3D NR, BLC, digital watermarking, applicable to various monitoring scenes. Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, SMD (human). Supports antenna 2.4G Wi-Fi, up to 80m range in open area Supports max. 256 G Micro SD card.Built-in MIC.
