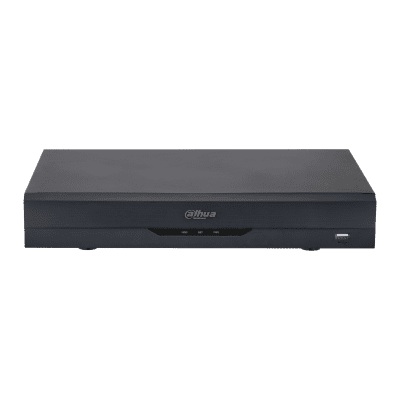

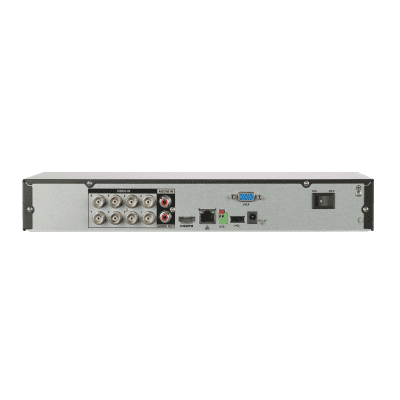

Dahua DH-XVR5108H-I3 8CH Penta-brid 5MP Value/1080P Mini 1U 1HDD WizSense DVR
Product Profile
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
Series Overview
Dahua Technology, a world-leading video-centric smart IoT solution and service provider, debuted its new XVR series, XVR5000-I3 Series featuring max.full-channel SMD Plus to benefit customers from AI upgrade (The number of channels differs depending on the model. Please refer to the specifications below for information on the number of channels.). This series has been developed to reduce false-alarm rates and the cost of human surveillance, thus bringing great value to customers in search of products with accurate human/vehicle alarm to
raise the security level of various indoor and outdoor facilities.
Functions
Real 5MP Mode
This mode can enhance XVR preview and playback resolution to Real 5MP. Enable more clarity image experience.
Face Recognition
Dahua Face Recognition technology extracts the features of captured faces and compares them with that in face database.
Perimeter Protection
Automatically filters out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improves alarm accuracy.
SMD Plus
With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.
Smart Dual Illuminators
With Smart Dual Illuminators technology, you can select Smart Illumination Mode for the system to automatically switch between IR mode and white light mode. It allows white light to be turned on when a target is detected by the SMD Plus/Perimeter Protection function of AI-enabled XVR. This significantly reduces light pollution at night. Together with other modes, including IR Mode and White Light Mode, the smart dual illumination technology can meet the requirements of a wide variety of scenes.
One-click Arming/Disarming
With just one click, you can enable or disable alarm linkages to show messages, send emails, output audio alarms and more, through the mobile app and platform.
Customizable Alarm Audio
Designed for your convenience, the TiOC alarm can be customized to meet your needs. It is flexible, allowing you to directly upload your customized audio through the mobile app and XVR.
AI Coding
Compared with H.265/H.264, AI coding can reduce more than 50% bit rate and storage requirements without loss of decoding compatibility, providing clear human and vehicle details.
Audio over Coax
The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation.
Technical Specification
Make | Dahua Technology |
---|---|
Manufacturer | Dahua Technology Ltd |
Category | CCTV>Digital video recorders (DVRs) |
Model code | DH-XVR5108H-I3 |
Series | WizSense Series |
Channels | 8 channels |
Hybrid IP inputs | 12 |
Storage Capacity GB | 16,000 GB storage |
Compression Type | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
Resolution | 5MP resolution |
External Storage | USB |
Recording System | HDD |
Physical Specifications |
Dimensions mm: 325 x 257.1 x 55 Weight kg: 1170 |
Electrical Specifications |
Voltage: 12 V DC Power Consumption: <7 W (without HDD) |
Environmental Specifications |
Operating Temp oC: -10 ~ +55 C (14 ~ 131 F) Operating Humidity %: ≤93 |
Additional info |
|
Download PDF version Download PDF version |
