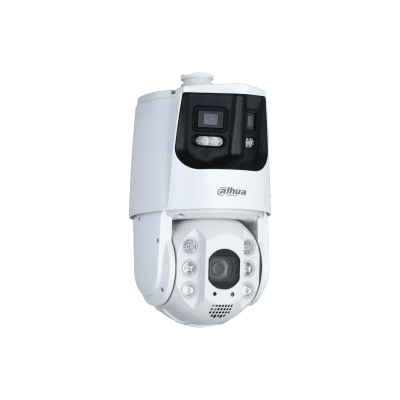

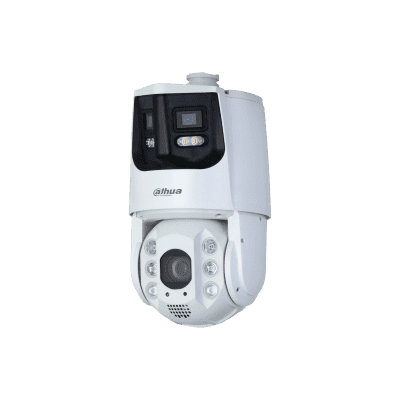

Dahua DH-SDT6C432-4P-GB-APV-0280 4MP 32X Smart Dual Light Network Panoramic PTZ Camera
Product Profile
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
System Overview
The multi-sensor series pushes the bar on PTZ cameras with its enhanced monitoring capabilities captured in its unique lens design. Fitted with an extra lens, it quickly tracks targets while keeping an eye on the monitored area. They also harness the strength of their embedded AI intelligent chip to perform a wide variety of intelligent functions, making them ideal for use in many scenarios.
Functions
Face Detection
Supports 6 attributes and 8 expressions. It also supports face cutout settings: Face, and single inch photo. Three snapshot methods are also featured: Real-time snapshot, priority snapshot, and quality priority.
Wide Dynamic Range
The camera produces vivid images, even in high-contrast lighting conditions, by using industry-leading wide dynamic range (WDR) technology. For scenes that quickly alternate between bright and low lighting, WDR adjusts to fully capture both the bright and dark areas of a scene, producing superior quality videos.
Perimeter Protection
Automatically filters out false alarms caused by animals, rustling leaves, bright lights, and more, and uses secondary recognition during target detection to improve alarm accuracy.
Technical Specification
| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology Ltd |
| Category | CCTV>IP cameras |
| Model code | DH-SDT6C432-4P-GB-APV-0280 |
| Series | WizSense Series |
| Chip Inch Size | 1/2.8 inch |
| Colour Type | Colour / Monochrome |
| Resolution | 4MP resolution |
| Specialist Type | PTZ |
| Sensitivity Lux | Panorama: Colour: 0.001 lux@F1.0 , B/W: 0.0001 lux@F1.0 ; Detail: Colour: 0.005 lux@F1.6 , B/W: 0.0005 lux@F1.6 , 0 Lux (IR on) |
| Electrical Specifications |
Voltage: 36 V DC Power Consumption: Max.: 35 W |
| Motion Activated | Yes |
| Focal Length mm | Panorama: 2.8 mm ; Detail: 4.8 ~ 154 mm |
| Mount Type | Wall, Ceiling, Plane, Parapet |
| Wide Dynamic Range | Yes |
| Network Properties |
Image Frame Rate: Max. 25/30 fps@2560 × 1440 Interface: RJ-45 (10/100 Base-T) Network Protocols: FTP;RTMP;IPv6;Bonjour;IPv4;DNS;RTCP;PPPoE;NTP;RT P;802.1x;HTTPS;SNMP;TCP/IP;DDNS;UPnP;NFS;ICMP;U DP;IGMP;HTTP;SSL;DHCP;SMTP;Qos;RTSP;ARP |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter Range | Panorama: 1/1 s–1/10,000s ; Detail: 1/1s–1/30,000s |
| Zoom | Yes |
| Compression Type | H.264H;H.264B;Smart H.265+;H.265;MJPEG(Sub Stream);Smart H.264+;H.264M |
| Physical Specifications |
Dimensions mm: 247 x 202 x 359.8 Weight g: 5300 |
| Environmental Specifications |
Protection: IP66 Operating Temperature oC: -40 ~ +65 C (-40 ~ +149 F) Operating Humidity %: ≤95 |
| Additional info |
|
| Download PDF version Download PDF version | |
