Dahua Technology DH-SD6C3425XB-HNR-A-PV1 IP camera Specifications

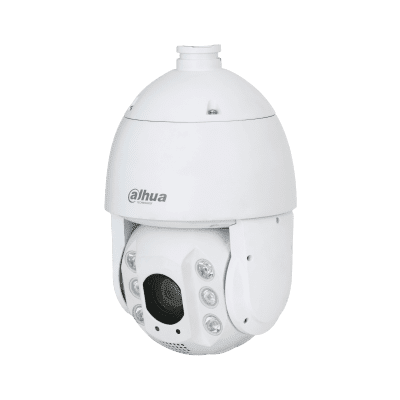

Dahua DH-SD6C3425XB-HNR-A-PV1 4MP 25x Starlight IR WizSense Network PTZ Camera

Product Profile

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

System Overview

Featuring powerful optical zoom and accurate pan/tilt/zoom performance, this camera can provide large monitoring range and great detail. The camera has very excellent low light performance due to adopting the latest starlight technology. The camera is equipped with smooth control, high quality image and good protection, which make it can meet most of the requirements of video surveillance applications.

Functions

Starlight Technology
For challenging low-light conditions, Dahua's Starlight Ultra-low Light Technology offers the best in light sensitivity, capturing colour in vivid detail, even in lighting as low as 0.005 lux. The camera uses a set of optical features to balance light throughout the scene, producing clear images in dark environments.

Perimeter Protection
Automatically filters out false alarms caused by animals, rustling leaves, bright lights, and more, and uses secondary recognition during target detection to improve alarm accuracy.

Smart Capture
Supports human, motor vehicle and non-motor vehicle image capture.

Face Detection
Supports 6 attributes and 8 expressions: Gender, age, glasses, mask, beard and expressions (anger, sadness, disgust, fear, surprise, calm, happiness, and confusion). It also supports face cutout settings: Face, and single inch photo. Three snapshot methods are also featured: Realtime snapshot, priority snapshot, and quality priority.

PFA Technology
PFA technology has introduced new methods of judgment that ensure the accuracy and predictability of the direction of subject distance adjustment. The result is a set of advanced focusing algorithms that ensure image clarity when zooming and that shorten focus time. This makes the camera highly advanced in its functions, substantially improving the quality of your experience.

Siren and Light Active Deterrence
The camera supports the red and blue light alarm and voice alarm when perimeter event occurs, to realize the deterrence and effective intervention. The camera is built in the alarm voice, and supports customized voice importing.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology Ltd
Category	CCTV>IP cameras
Model code	DH-SD6C3425XB-HNR-A-PV1
Series	WizSense Series
Chip Inch Size	1/2.8 inch
Colour Type	Colour / Monochrome
Resolution	4MP resolution
Specialist Type	PTZ
Sensitivity Lux	Colour: 0.005 lux@F1.6, B/W: 0.0005 lux@F1.6, (IR light on) 0
Electrical Specifications	Voltage: 24 V DC / PoE+ Power Consumption: Basic: 13 W, Max.: 23 W
Motion Activated	Yes
Focal Length mm	4.8 mm ~ 120 mm
Mount Type	Wall, Ceiling, Pole, Corner, Parapet
Wide Dynamic Range	Yes
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter Range	1/1 s ~ 1/30,000 s
S/ N (Signal/ Noise) Ratio dB	≥ 55 dB
Zoom	Yes
Compression Type	Smart H.265+; H.265; Smart H.264+; H.264B; H.264H; MJPEG
Network Properties	Interface: RJ-45 (10/100 Base-T) Network Protocols: HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; QoS; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; IP Filter; RTMP; Bonjour; TCP; SMB; NFS
Physical Specifications	Weight g: 4600 Dimensions mm: 325.3 x Φ202
Environmental Specifications	Operating Temperature ^oC: -40 ~ +70 C (-40 ~ +158 F) Protection: IP66 Operating Humidity %: ≤ 95
System Requirements	Web Browser: IE 7 and later versions, Chrome 42 and earlier versions, Firefox 52 and earlier versions, Safari
Additional info	1/2.8" 4Megapixel STARVIS™ CMOS Powerful 25x optical zoom Starlight technology IR distance up to 150 m Perimeter protection Face detection Metadata Full-colour illuminator; red and blue warning light IP66 Smart dual illuminators (recommended to use within 50 m)
Download PDF version Download PDF version

Make

Dahua Technology

Manufacturer

Dahua Technology Ltd

Category

CCTV>IP cameras

Model code

DH-SD6C3425XB-HNR-A-PV1

Series

WizSense Series

Chip Inch Size

1/2.8 inch

Colour Type

Colour / Monochrome

Resolution

4MP resolution

Specialist Type

PTZ

Sensitivity Lux

Colour: 0.005 lux@F1.6, B/W: 0.0005 lux@F1.6, (IR light on) 0

Electrical Specifications

Voltage: 24 V DC / PoE+
Power Consumption: Basic: 13 W, Max.: 23 W

Motion Activated

Yes

Focal Length mm

4.8 mm ~ 120 mm

Mount Type

Wall, Ceiling, Pole, Corner, Parapet

Wide Dynamic Range

Yes

Back Light Compensation

Yes

Auto Gain Control

Yes

White Balance

Yes

Electronic Shutter Range

1/1 s ~ 1/30,000 s

S/ N (Signal/ Noise) Ratio dB

≥ 55 dB

Zoom

Yes

Compression Type

Smart H.265+; H.265; Smart H.264+; H.264B; H.264H; MJPEG

Network Properties

Interface: RJ-45 (10/100 Base-T)
Network Protocols: HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; QoS; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; IP Filter; RTMP; Bonjour; TCP; SMB; NFS

Physical Specifications

Weight g: 4600
Dimensions mm: 325.3 x Φ202

Environmental Specifications

Operating Temperature ^oC: -40 ~ +70 C (-40 ~ +158 F)
Protection: IP66
Operating Humidity %: ≤ 95

System Requirements

Web Browser: IE 7 and later versions, Chrome 42 and earlier versions, Firefox 52 and earlier versions, Safari
