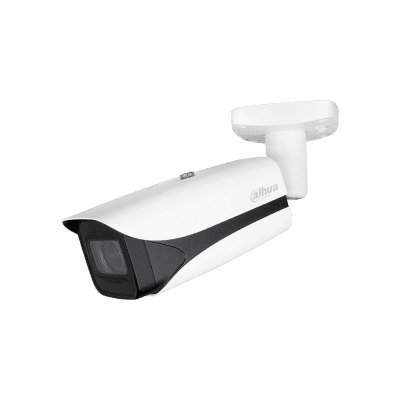

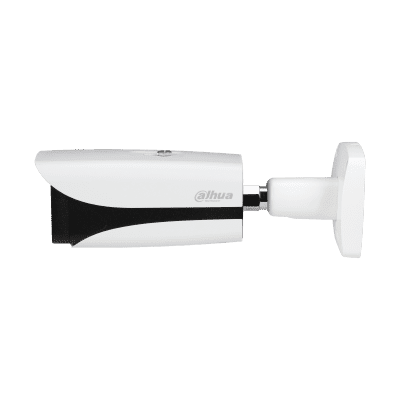

Dahua DH-IPC-HFW5442E-ZE 4MP IR Vari-focal Bullet WizMind Network Camera
Product Profile
Launched by Dahua Technology, Dahua WizMind is a full portfolio of solutions composed of project-oriented products including IPC, IVSS,NVR, PTZ, XVR, Thermal and software platform which adopts industry-leading deep learning algorithms. Focusing on customer's requirements, WizMind provides precise, reliable and comprehensive AI solutions for verticals.
Series Overview
Driven by deep learning algorithms, Dahua WizMind S Series network camera offers a variety of intelligent functions that greatly improve the accuracy of audio and video analysis. It supports video metadata, smart sound detection, face detection, perimeter protection, people counting and more. The camera also adopts advanced image processing AI-Powered Image technology and has the Deeplight night vision effect. The camera is dustproof, waterproof and vandal-proof, and is certified as IP67 and IK10 (the type of protection varies depending on the model).
Functions
AI-Powered Image
With AI ISP technology, the camera is able to easily adapt to scenes, producing high quality images that reveal the fine details of targets.
Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.
Face Detection
Dahua Face Detection technology can detect the face in the image. With deep learning algorithm, the technology supports detecting, tracking, capturing and selecting the best face image, and then outputs face snapshot.
People Counting
With deep learning algorithm, Dahua People Counting technology can track and process moving human body targets to realize the accurate statistics of enter No., leave No., and In Area No. Working with management platform, it outputs reports to meet your requirements.
Video Metadata
With deep learning algorithm, Dahua Video Metadata technology can detect, track, capture vehicle, non-motor vehicle and people, and select the best images, and extract attributes.
Smart Sound Detection
With deep learning algorithm, Dahua Smart Sound Detection technology can detect and identifies the sound of scream and glass breaking, etc.
Cyber Security
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from compromising the device.
Protection (IP67, IK10, Wide Voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes.
IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 cm (Impact energy is 20J).
Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
Technical Specification
| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology Ltd |
| Category | CCTV>IP cameras |
| Model code | DH-IPC-HFW5442E-ZE |
| Series | WizMind Series |
| Chip Inch Size | 1/1.8 inch |
| Colour Type | Colour / Monochrome |
| Resolution | 4MP resolution |
| Sensitivity Lux | 0.0007 lux@F1.8 (Colour, 30 IRE) 0.0004 lux@F1.8 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Electrical Specifications |
Voltage: 12 V DC, PoE, ePoE Power Consumption: Basic: 3.7 W (12 VDC); 4.9 W (PoE) / Max. (H.265+ WDR+ Intelligence on+IR on): 9.8 W (12 VDC); 12.3 W (PoE) |
| Motion Activated | Yes |
| Focal Length mm | 2.7 ~ 12 |
| Mount Type | Pole |
| Wide Dynamic Range | Yes |
| Picture Elements HxV | 2688 x 1520 |
| Network Properties |
Image Frame Rate: 25/30 fps Interface: RJ-45 (10/100 Enhancement Base-T) Network Protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter Range | Auto/Manual 1/3 s–1/100,000 s |
| S/ N (Signal/ Noise) Ratio dB | >56 |
| Compression Type | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Physical Specifications |
Dimensions mm: 273 x 95 x 95 Weight g: 1120 |
| Environmental Specifications |
Protection: IP67, IK10 Operating Temperature oC: -30 ~ +60 C (-22 ~ +140 F) Operating Humidity %: ≤95 |
| System Requirements | Web Browser: IE: IE 9 and later, Chrome: Chrome 102 and later, Firefox: Firefox 88 and later |
| Additional info |
|
| Download PDF version Download PDF version | |
