Dahua Technology DH-IPC-HFW2449TL-S-PRO IP camera Specifications

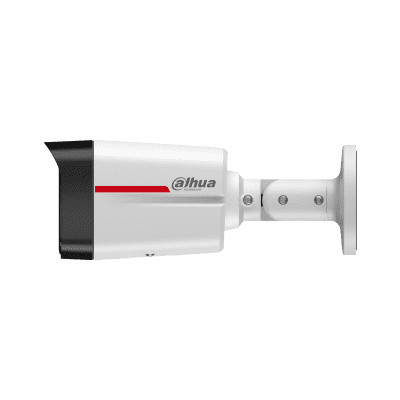

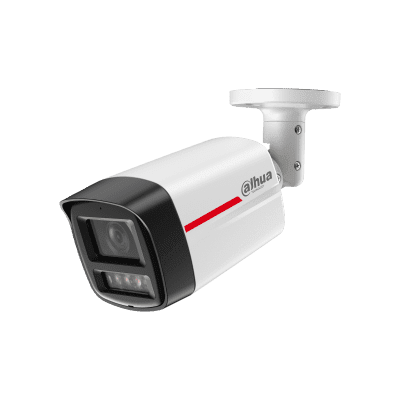

Dahua 4MP WizColor Bullet Camera with Fixed-Focal and WizSense AI

Product Profile

Dahua Technology's WizSense is a series of AI-based products that leverage independent AI chips and deep learning algorithms. Designed for high-accuracy human and vehicle detection, WizSense helps users quickly respond to defined targets. Offering intelligent, simple, and inclusive solutions, it incorporates Dahua's advanced technology.

Series Overview

The WizSense 2 Series network camera uses deep learning algorithms to support intelligent functions such as perimeter protection and smart motion detection. With Starlight technology, it delivers superior image quality in low-light conditions.

Key Features

WizColor Technology
Combining AI-ISP, a large pixel sensor, and a wide aperture, WizColor captures vibrant, full-colour images in low-light environments, minimizing motion blur and preserving fine details. Unlike traditional cameras, it optimises weak light sources (e.g., moonlight, city lights), ensuring clear, long-distance full-colour monitoring at night.

AI-ISP
AI ISP technology adapts to various scenes, producing high-quality images with fine details of targets.

SMD Plus
Dahua's Smart Motion Detection (SMD) technology uses intelligent algorithms to filter false alarms, detecting only relevant motion and ensuring accurate alerts.

Perimeter Protection
Using deep learning, Dahua’s Perimeter Protection accurately identifies humans and vehicles, reducing false alarms in restricted areas with features like tripwire, intrusion, fast-moving, and loitering detection.

Smart H.265+ & H.264+
Dahua’s advanced encoding technology improves video quality, boosts encoding efficiency, and reduces storage and transmission costs compared to standard H.265 and H.264.

Cyber Security
Dahua network cameras feature robust security measures, including authentication, encryption, and trusted protection to safeguard against cyber threats.

Protection (IP67, Wide Voltage)
With an IP67 rating, the camera is dustproof and waterproof, surviving immersion in 1m of water for up to 30 minutes. It also supports a wide voltage range (±30%) for reliable performance in outdoor environments with unstable power.

Dahua WizSense offers a comprehensive, AI-driven surveillance solution, ensuring high-quality images, security, and reliability in various conditions.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology Ltd
Category	CCTV>IP cameras
Model code	DH-IPC-HFW2449TL-S-PRO
Series	WizSense Series
Chip Inch Size	1/1.8 inch
Colour Type	Colour / Monochrome
Resolution	4MP resolution
Sensitivity Lux	0.0005 lux@F1.0
Electrical Specifications	Voltage: 12 V DC Power Consumption: Max.: 5.6 W (12 VDC); 7.2 W (PoE)
Motion Activated	Yes
Focal Length mm	2.8 mm; 3.6 mm; 6 mm
Mount Type	Pole, Corner
Wide Dynamic Range	Yes
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter Range	Auto/Manual 1/3 s–1/100,000 s
S/ N (Signal/ Noise) Ratio dB	>56 dB
Compression Type	H.265; H.264; H.264H; H.264B; MJPEG
Network Properties	Interface: RJ-45 (10/100 Base-T) Network Protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registeration
Physical Specifications	Weight g: 570 Dimensions mm: 197.9 x 80.2 x 76.2
Environmental Specifications	Operating Temperature ^oC: -40 ~ +60 C (-40 ~ +140 F) Protection: IP67 Operating Humidity %: ≤ 95
Additional info	4-MP 1/1.8" CMOS image sensor, low luminance, and high definition image. Outputs max. 4 MP (2688 × 1520) @20 fps, and supports 2560×1440 (2560 × 1440) @25/30 fps. H.265 codec, high compression rate, ultra-low bit rate. Built-in warm light, and the max. illumination distance is 50 m. ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments. Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection. Supports max. 256 G Micro SD card; built in Mic.
Download PDF version Download PDF version

Make

Dahua Technology

Manufacturer

Dahua Technology Ltd

Category

CCTV>IP cameras

Model code

DH-IPC-HFW2449TL-S-PRO

Series

WizSense Series

Chip Inch Size

1/1.8 inch

Colour Type

Colour / Monochrome

Resolution

4MP resolution

Sensitivity Lux

0.0005 lux@F1.0

Electrical Specifications

Voltage: 12 V DC
Power Consumption: Max.: 5.6 W (12 VDC); 7.2 W (PoE)

Motion Activated

Yes

Focal Length mm

2.8 mm; 3.6 mm; 6 mm

Mount Type

Pole, Corner

Wide Dynamic Range

Yes

Back Light Compensation

Yes

Auto Gain Control

Yes

White Balance

Yes

Electronic Shutter Range

Auto/Manual 1/3 s–1/100,000 s

S/ N (Signal/ Noise) Ratio dB

>56 dB

Compression Type

H.265; H.264; H.264H; H.264B; MJPEG

Network Properties

Interface: RJ-45 (10/100 Base-T)
Network Protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registeration

Physical Specifications

Weight g: 570
Dimensions mm: 197.9 x 80.2 x 76.2

Environmental Specifications

Operating Temperature ^oC: -40 ~ +60 C (-40 ~ +140 F)
Protection: IP67
Operating Humidity %: ≤ 95

Additional info

4-MP 1/1.8" CMOS image sensor, low luminance, and high definition image.
Outputs max. 4 MP (2688 × 1520) @20 fps, and supports 2560×1440 (2560 × 1440) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in warm light, and the max. illumination distance is 50 m.
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Supports max. 256 G Micro SD card; built in Mic.
