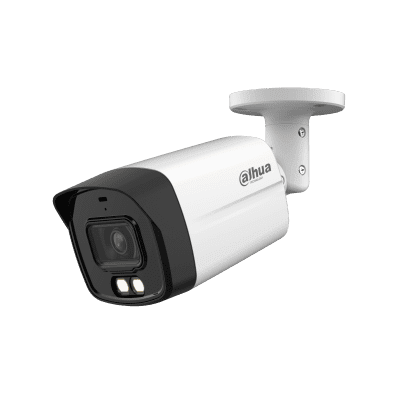

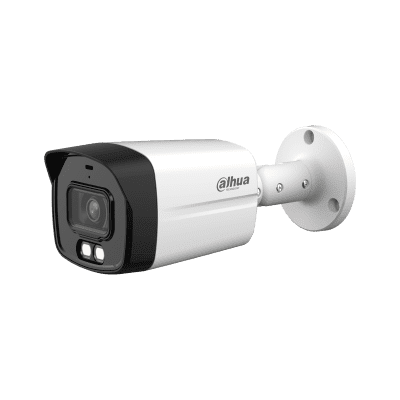

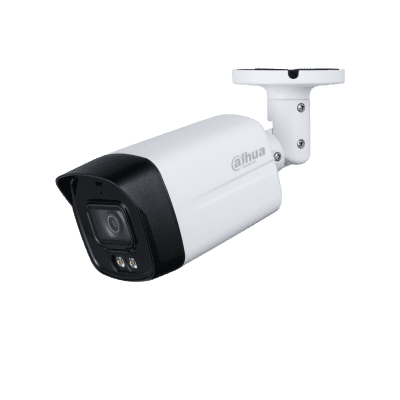

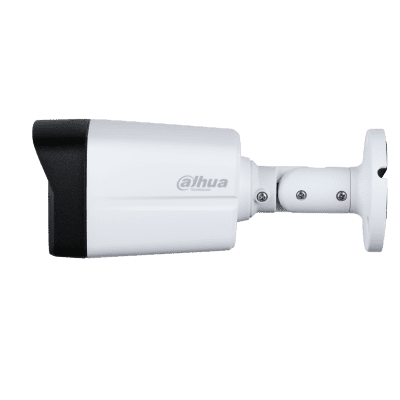

Dahua DH-HAC-HFW1500TLM-IL-A 5MP Smart Dual Light HDCVI Fixed-focal Bullet Camera
Product Profile
System Overview
The Lite Series is a great choice for consumers looking for high quality monitoring products at a reasonable price. Its low cost and high performance make it ideal for residential areas and SMB solutions. This series is equipped with a wide range of technologies, such as full-colour and starlight, providing various solutions for different scenarios.
Functions
Broadcast-quality Audio
Audio signal transmission over coaxial cables is supported by the HDCVI camera. It adopts a unique audio processing and transmission technology that restores source audio and eliminates noise, ensuring the quality and reliability of the audio information that is collected. This becomes important for video surveillance applications that use audio information as a type of supplementary evidence.
Smart Dual Light
With its smart dual light mechanism, the camera automatically turns on the white light when Perimeter Protection/SMD Plus function of AI XVR detects a target in the rule area to capture clear, vivid images. When the target leaves the rule area, the camera automatically switches over from the white light to the IR light to significantly reduce light pollution.
Super Adapt
With its intelligent algorithm, the camera automatically adjusts its parameters to provide optimal performance and vivid images.
Protection (IP67, Wide Voltage)
IP67: The camera passed a series of rigorous dust and immersion tests. Its enclosure is both dust-proof and waterproof, and can function normally while being immersed in 1 m deep water for up to 30 minutes.
Wide voltage: The camera has ±30% input voltage tolerance (for some power supplies) and a wide voltage range, making it suitable for a variety of outdoor scenarios.
4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals (video, audio*, data and power) which are simultaneously transmitted over a coaxial cable. Dual-way data transmission allows the HDCVI camera to interact with the XVR to perform various actions such as sending control signals and triggering alarms. HDCVI technology also supports PoC, which makes the camera easy and quick to install.
* Audio input is available for select HDCVI camera models.
Long Distance Transmission
HDCVI technology provides long distance transmission in real time without transmission loss. It supports transmission distances up to 700 m for 2-MP/5-MP/8-MP HD videos through coaxial cables, and up to 300 m through UTP cables. The results were obtained and verified through rigorous testing in Dahua's test laboratory.
Simplicity
HDCVI technology inherits the simplicity of traditional analogue surveillance systems, making it a great mechanism for protecting your valuables. HDCVI can be upgraded from the traditional analogue system without replacing the existing coaxial cabling. Its plug and play design enables it to produce high-definition videos during surveillance without the hassle of configuring a network.
Multi-language OSD
The OSD offers multiple functions to meet the many requirements of a monitoring scene, such as backlight mode, day/night mode, white balance, privacy mask, and motion detection. 11 languages are available for OSD: Chinese, English, French, German, Spanish, Portuguese, Italian, Japanese, Korean, Russian and Polish.
Technical Specification
| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology Ltd |
| Category | CCTV>CCTV cameras |
| Model code | DH-HAC-HFW1500TLM-IL-A |
| Series | Lite series |
| Colour Type | Colour / Monochrome |
| Resolution TVL | 5 MP |
| Sensitivity lux | 0.05 lux@F1.6 (Color, 30 IRE), 0.005 lux@F1.6 (B/W, 30 IRE), 0 lux (Illuminator on) |
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 4.5 W |
| Motion Activated | Yes |
| Focal Length mm | 2.8 mm; 3.6 mm |
| Wide Dynamic Range | Yes |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | PAL: 1/25 s–1/100000 s, NTSC: 1/30 s–1/100000 s |
| S/ N (Signal/ Noise) Ratio dB | >65 |
| Video Output | CVI/TVI/AHD/CVBS by one BNC port |
| Physical Specifications |
Dimension mm: 198.4 x 80.2 x 76.2 Weight g: 300 |
| Environmental Specifications |
Operating Temperature oC: -40 ~ +60 C (-40 ~ +140 F) Protection: IP67 Operating Humidity %: < 95 |
| Additional info |
|
| Download PDF version Download PDF version | |
