Delta Scientific DSC7090 Barricade Specifications

Delta DSC7090 Beam Barricade

Product Profile

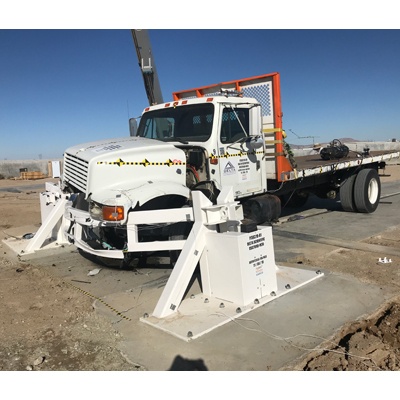

Delta Scientific's new bolt down DSC7090 beam barricade has passed its crash test garnering an ASTM M30/P1 rating. That means the DSC7090 will stop a 15,000 pound (6800 kg) truck going 30 mph (50 kph) with negative 6.3 feet (1.9 metres) of penetration. Raising in only five seconds and lowering in merely two seconds yields a fast cycle rate of over 100 vehicles in and out per hour, making the new DSC7090 ideal for higher traffic and population locations. The dual beam design provides coverage of 12 to 24 feet (3.7 to 7.3 metres) of roadway with a full 90 degree opening.

The DSC7090 beam barrier crash test is the culmination of one of a series of new products that Delta will be bringing to market. Full scale crash testing provides unequivocal proof of the stopping capacity of each of Delta's vehicle barricade designs. To date, Delta Scientific has conducted 67 full crash tests with more scheduled. That's another way in which Delta Scientific can commit to providing safety and security through product innovation.

The new DSC7090 will be used in locations where wide roadways need to be secured from attacking vehicles and in larger parking areas where security systems are needed to deter theft. To meet these heightened demands, the DSC7090 deploys sophisticated touch screen controls and the same logic as used by key government organizations. This includes an LED light package with traffic lights. Also available is a strobe light and audible alarm package.

The DSC7090 operates remotely by means of an integral hydraulic pumping unit (HPU) that is buttress enclosed. The HPU can be powered from a local single or three-phase power source. Alternative power options are also available.

Contact manufacturer Contact manufacturer

Make	Delta Scientific
Manufacturer	Delta Scientific Corporation
Category	Access Control>Barricades
Model code	DSC7090
Type of Barricade	High security
Certification level	ASTM M30/P1
Gross vehicle weight	15,000 pounds
Crash speed	30 mph
Crash rated	Yes
Additional info	Raising in only five seconds and lowering in merely two seconds yields a fast cycle rate of over 100 vehicles in and out per hour, making the DSC7090 ideal for higher traffic and population locations. The DSC7090 is used when wide roadways need to be secured from attacking vehicles and in larger parking areas where security systems are needed to deter theft. The DSC7090 is crash tested to an ASTM M30/P1 rating. That means it will stop a 15,000 pound (6800 kg) truck going 30 mph (50 kph) with negative 6.3 feet (1.9 m) of penetration. The dual beam design provides coverage of 12 to 24 feet (3.7 to 7.3 m) of roadway with a full 90 degree opening. This prevents both large and small vehicles from breaching the security perimeter.
Download PDF version Download PDF version

Make

Delta Scientific

Manufacturer

Delta Scientific Corporation

Category

Access Control>Barricades

Model code

DSC7090

Type of Barricade

High security

Certification level

ASTM M30/P1

Gross vehicle weight

15,000 pounds

Crash speed

30 mph

Crash rated

Yes

Additional info

Raising in only five seconds and lowering in merely two seconds yields a fast cycle rate of over 100 vehicles in and out per hour, making the DSC7090 ideal for higher traffic and population locations. The DSC7090 is used when wide roadways need to be secured from attacking vehicles and in larger parking areas where security systems are needed to deter theft.

The DSC7090 is crash tested to an ASTM M30/P1 rating. That means it will stop a 15,000 pound (6800 kg) truck going 30 mph (50 kph) with negative 6.3 feet (1.9 m) of penetration. The dual beam design provides coverage of 12 to 24 feet (3.7 to 7.3 m) of roadway with a full 90 degree opening. This prevents both large and small vehicles from breaching the security perimeter.

Download PDF version Download PDF version
