BCDVideo NVRBCD-8 BCD, Intel® Core™ Processors (Kabylake-S), Cyber Appliance 1U Rackmount Appliance

Product Profile

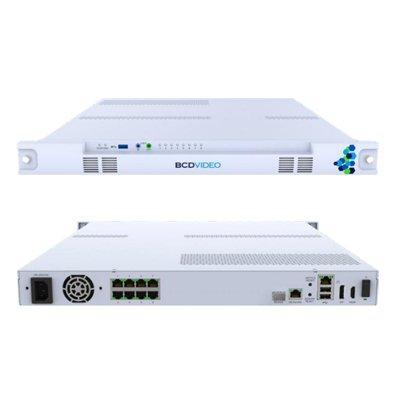

The BCDNVR8 and BCDNVR24 are BCD’s first Original Design Manufactured devices and are capable of storing up to 80TB of raw storage, available with either an 8 or 24 ioport PoE+ to PoE switch. All systems include four drive bays, allow for RAID 0/1/5/10, and BCD’s Harmonize Bridge, powered by Tiger Technology, delivering hybrid cloud capability, as well as disaster recovery. Additionally, all systems come standard with a two-year advanced exchange warranty, and a five-year Keep Your Hard Drive (KYHD) replacement warranty.

Combining a management server, storage, and network switch all in one appliance, these solutions are ideal for SMBs, retail, small branch banking and finance environments, and more.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Technical Specification

Make	BCDVideo
Manufacturer	BCDVideo
Category	CCTV>Network video recorders (NVRs)
Model code	NVRBCD-8
Video inputs	8
Recording system	HDD
Storage capacity	Up to 80TB
Secondary storage	USB
Operating system	Windows 10 IoT, can be upgraded to Windows Server 2019 or Server 2022
Electrical Specifications	Voltage: 12 V / 53 V
Physical Specifications	Weight (kg): 14 Dimensions (mm): 486 x 483 x 44
Environmental Specifications	Operating temperature (°C): 0 ~ 40 C (32 ~ 104 F) Operating humidity (%): 10 ~ 90
Additional info	Up to 80TB of Storage 8-port PoE+ to PoE Switch Intel® Core™ i5-7500 processor Compatible with Harmonize Bridge for Hybrid Cloud Storage Web management UI for Switch configuration, PoE settings, etc. Systems come with a 2 Year Warranty on the base hardware, and a 5 Year KYHD Warranty on the drives
