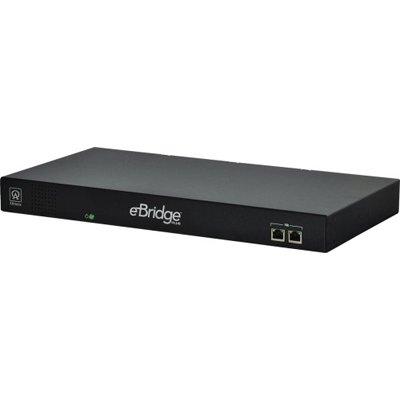

Altronix eBridge800E EoC 8 Port Receiver

Technical Specification

Features:

Make: Altronix
Model code: eBridge800E
Receiver Type: Yes
No of Video Inputs: 8 channels
Dimensions mm: 486 x 42 x 64

Additional info:

Altronix eBridge800E is an all-in-one head-end solution for upgrading coax to IP that combines a PoE+ switch and EoC Receiver into a single integrated unit for upgrading existing coax infrastructure and deploying the latest IP devices. This 8-Port Managed EoC Receiver with Integral PoE+ switch provides 30W full power per port (240W max). Features also include an integral battery charger for applications requiring backup and embedded LINQ™ Technology to monitor, control and report power and diagnostics from anywhere.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Altronix
Manufacturer	Altronix
Category	CCTV>Fibre optics, telemetry receivers, transmitters, transceivers
Model code	eBridge800E
Receiver Type	Yes
No of Video Inputs	8 channels
Physical Specifications	Dimensions mm: 486 x 42 x 64 Weight g: 2720
Environmental Specifications	Operating Temperature ^oC: -10 ~ +50 C (14 ~ 122 F) Operating Humidity %: 20 ~ 85
Electrical Specifications	Power Consumption: 30W Voltage: 115 V AC / 230 V AC
Additional info	Altronix eBridge800E is an all-in-one head-end solution for upgrading coax to IP that combines a PoE+ switch and EoC Receiver into a single integrated unit for upgrading existing coax infrastructure and deploying the latest IP devices. This 8-Port Managed EoC Receiver with Integral PoE+ switch provides 30W full power per port (240W max). Features also include an integral battery charger for applications requiring backup and embedded LINQ™ Technology to monitor, control and report power and diagnostics from anywhere.
