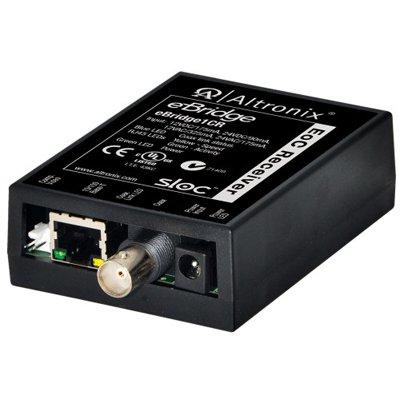

Altronix eBridge1CR EoC Single Port Receiver
Technical Specification
- Make: Altronix
- Model code: eBridge1CR
- Receiver Type: Yes
- No of Video Inputs: 1 channels
- Dimensions mm: 64 x 25 x 97
The eBridge1CR - IP over Coax receiver is designed for use with eBridge1CT to enable fast 10/100Base-T Ethernet digital communication over coax cable. This plug and play unit facilitates system upgrades from analog to IP cameras/devices utilizing existing legacy Coax and eliminating the costs and labor associated with installing new network cabling. In addition data transmission is extended up to 610m (over five times the 100m Ethernet maximum length), eliminating the need for repeaters. eBridge units will transmit Composite Video Signal with Ethernet data simultaneously.
Read moreMake | Altronix |
---|---|
Manufacturer | Altronix |
Category | CCTV>Fibre optics, telemetry receivers, transmitters, transceivers |
Model code | eBridge1CR |
Receiver Type | Yes |
No of Video Inputs | 1 channels |
Physical Specifications |
Dimensions mm: 64 x 25 x 97 Weight g: 100 |
Environmental Specifications |
Operating Temperature oC: -10 ~ +50 C (14 ~ 122 F) Operating Humidity %: 20 ~ 85 |
Electrical Specifications |
Power Consumption: 12VDC/275mA, 24VDC/110mA, 16VAC/375mA, 24VAC/200mA Voltage: 12 ~ 24 V DC / 16 ~ 24 V AC |
Additional info |
The eBridge1CR - IP over Coax receiver is designed for use with eBridge1CT to enable fast 10/100Base-T Ethernet digital communication over coax cable. This plug and play unit facilitates system upgrades from analog to IP cameras/devices utilizing existing legacy Coax and eliminating the costs and labor associated with installing new network cabling. In addition data transmission is extended up to 610m (over five times the 100m Ethernet maximum length), eliminating the need for repeaters. eBridge units will transmit Composite Video Signal with Ethernet data simultaneously. |
Download PDF version Download PDF version |
