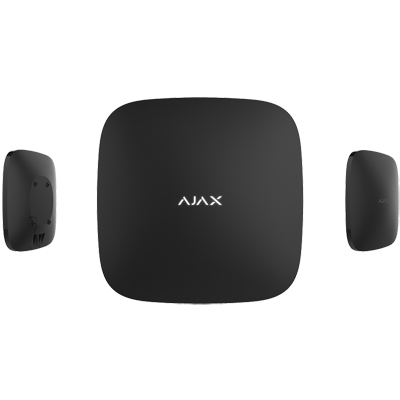

Ajax Hub Plus security system control panel

Technical Specification

Features:

Make: Ajax
Model code: Hub Plus
Control Panels & Accessories: Yes
Tamper: Yes
Dimensions mm: 163 x 163 x 36

Additional info:

Supports the connection of up to 150 devices Supports the connection of up to 50 IP cameras or DVRs and 5 ReX radio signal range extender Supports up to 99 system users and up to 25 security groups Supports connection via 2 x SIM (2G/3G), Wi-Fi and Ethernet An alarm is transmitted within 0.15 s. Two-way encrypted communication with Ajax devices at the range of up to 2,000 m. The tamper button protects from attempting to detach the hub from the surface or remove the mounting panel Block cipher encryption of data, frequency hopping, and device authentication during each contact prevent forgery of the equipment and signals Also detects loss of connection with the Ajax Cloud and notifies about turning on / off Hassle-free installation and setup

Contact manufacturer Contact manufacturer

Make	Ajax
Manufacturer	Ajax Systems
Category	Intruder Alarms>Intruder alarm system control panels & accessories
Model code	Hub Plus
Control Panels & Accessories	Yes
Tamper	Yes
Physical Specifications	Dimensions mm: 163 x 163 x 36
Environmental Specifications	Operating Temp ^oC: -10 ~ +40 C (14 ~ 104 F)
Additional info	Supports the connection of up to 150 devices Supports the connection of up to 50 IP cameras or DVRs and 5 ReX radio signal range extender Supports up to 99 system users and up to 25 security groups Supports connection via 2 x SIM (2G/3G), Wi-Fi and Ethernet An alarm is transmitted within 0.15 s. Two-way encrypted communication with Ajax devices at the range of up to 2,000 m. The tamper button protects from attempting to detach the hub from the surface or remove the mounting panel Block cipher encryption of data, frequency hopping, and device authentication during each contact prevent forgery of the equipment and signals Also detects loss of connection with the Ajax Cloud and notifies about turning on / off Hassle-free installation and setup
