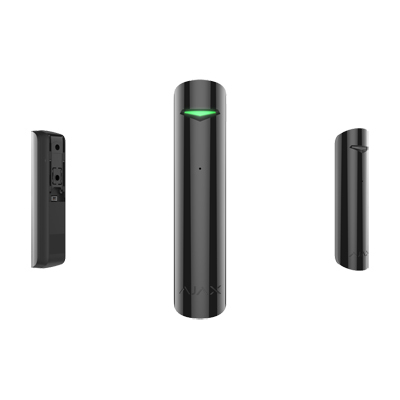

Ajax GlassProtect wireless glass break detector

Technical Specification

Features:

Make: Ajax
Model code: GlassProtect
Glassbreak Detectors: Yes
Coverage/ Range m: 9
Angle of Detection ^o: 180

Additional info:

Small wireless detector that notifies of glass being broken by intruders. It is installed at a distance of 9 m from the window and filters events that cause false alarms about breakage. Principle of operation Detects broken glass using an electret microphone, which registers the sound of impact against the glass and of the glass falling. Features Two-factor detection of broken glass prevents false alarms caused by thunder, dogs barking and noise from passing trucks. Installation and set up Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.

Contact manufacturer Contact manufacturer

Make	Ajax
Manufacturer	Ajax Systems
Category	Intruder Alarms>Intruder detectors
Model code	GlassProtect
Glassbreak Detectors	Yes
Coverage/ Range m	9
Angle of Detection ^o	180
Pet Tolerance	Yes
Indoor/Outdoor	Indoor
Electrical Specifications	Power Supply: 3V
Physical Specifications	Dimensions mm: 90 x 21 x 20
Environmental Specifications	Operating Temp ^oC: -10 ~ +40 C (14 ~ 104 F)
Additional info	Small wireless detector that notifies of glass being broken by intruders. It is installed at a distance of 9 m from the window and filters events that cause false alarms about breakage. Principle of operation Detects broken glass using an electret microphone, which registers the sound of impact against the glass and of the glass falling. Features Two-factor detection of broken glass prevents false alarms caused by thunder, dogs barking and noise from passing trucks. Installation and set up Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.
