Bosch Dinion XF Series  (21)

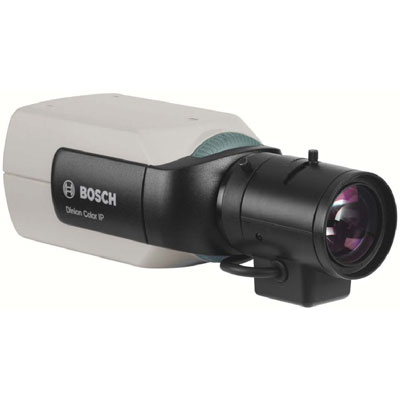

Bosch Security Systems has launched Dinion IP – its proven Dinion camera with integrated IP network connection - in response to the growing market demand for greater flexibility, improved camera functionality, reduced cost of ownership and improved accessibility.Jeremy Hockham, UK Managing Director of Bosch Security Systems explains: “Internet Protocol (IP) has revolutionised the way the world communicates and it is now set to transform CCTV surveillance systems.   Installers are receiving more and more requests for IP-enabled cameras as their customers recognise the benefits of IP-based surveillance installations in comparison to traditional solutions.” Bosch’s Dinion range of fixed cameras was first launched in 2002 meeting the need for affordable, high-performance CCTV imaging, and it then later introduced the DinionXF series to offer high performance Colour and Day/Night models addressing the critical issues of sensitivity and dynamic range. The new Dinion IP cameras combine all the benefits and reliability of the Dinion range with a network video server that transmits video and control data over IP network which means that images can be transmitted to several receivers simultaneously.  Dinion IP cameras have tri-streaming technology: dual MPEG-4 and JPEG compression modes simultaneously allow a dedicated stream at one frame rate for recording and a different stream for live viewing, while JPEGS can be streamed to other devices such as a PDA. With an Ethernet connection and analogue BNC output, Dinion IP cameras offer customers a hybrid solution as they can be connected to existing analogue CCTV equipment, whilst still offering the additional flexibility and scalability of IP-based CCTV systems.  Installation is straightforward and they are easy to configure via the IP network: configuration settings can be stored as computer files and copied from one camera to another and settings can be uploaded to many cameras in the network simultaneously. The Dinion IP and DinionXF IP cameras have in-built intelligent functionality, like alarm management with relay output, event handling, alarm input and motion detection.  Dinion IP is fully compliant with the IEEE 802.3af Power-over-Ethernet (PoE) standard. PoE means that installation is easy and additional cabling is eliminated as cameras do not require a local AC power source.  An additional benefit with PoE installations is if the network is supported by an uninterruptible power supply (UPS), Dinion IP cameras can continue to operate even when there is a power failure.  Bosch’s DinionXF IP and Dinion IP cameras can be fully integrated into Bosch’s VIDOS Video Management System and DiBos Digital Video and IP Recorder and Transmission System.  These cameras complement the other innovative IP products such as the VIP and VideoJet families of encoders and decoders and the VIDOS and NVR (Network Video Recorder).

At IFSEC 2006, Bosch Security Systems utilised a new stand design complete with a purpose-built demo suite to highlight its total security solutions capability, evident through its complete range of proven reliable, intruder, CCTV and communications technologies.Included within its intruder portfolio, and being seen for the first time in the UK, is the Abacus Evolution, an innovative intruder alarm panel range comprising two models designed for Grade 2 and Grade 3 residential and commercial applications that removes the burden of EN compliance and is quick and easy to install.  Abacus Evolution offers the highest levels of protection, whilst meeting and even exceeding the stringent false alarm requirements laid down by ACPO and the BSIA.Also look out for Blue Line, a new generation of aesthetically designed, high technology intrusion detectors that provide the optimum performance and maximum flexibility for installers working in virtually any residential/light commercial environment.Completing a hat-trick of new launches is the Connetix range of security communication products for intrusion and fire systems, offering reliable data transmission over a wide range of transmission paths and formats, and a turnkey solution for all audio and video verification needs.Within its CCTV portfolio, Bosch Security Systems will be showing the DiBos 8 family of powerful, network-oriented digital video surveillance and recording systems featuring advanced MPEG-4 digital encoding technology for the highest levels of image quality, information content, and data storage efficiency.  The new machine, which complements its highly successful DIVAR range, allows viewing of both live and recorded images on as many as 62 video channels (per unit), and has extensive communication, networking and systems interfacing features. Alongside the DiBos 8 is the Dibos Micro, ideal for smaller installations with a slimline desktop housing.  It allows the viewing of both live and recorded images on as many as 20 video channels with up to 12 audio channels, and has an internal storage capacity of 400 GB.The company’s IP credentials will be evidenced through its range of Cameras, including the latest Dinion IP high performance surveillance cameras delivering up to 25/30 images per second of DVD-quality video at a true 4 CIF MPEG-4 video resolution, and its Network Video Recorders (NVRs).  Bosch IP Network Video products are compatible with any existing analogue components installed.In the area of Public Address and Voice Evacuation, Bosch Security Systems has launched a new range of loudspeakers in line with market demand for the latest technology that combines optimum reliability and performance with a contemporary look and feel.The first of the four new product ranges is the EVAC Horn loudspeaker, available in 14”/25W and 20”/35W versions with maximum power outputs of 37.5W and 52.5W respectively and a frequency range of 550 – 5 kHz and 280 – 5 kHz.  Both are modular in concept, featuring high efficiency drivers and offering excellent speech reproduction. Both are similarly EVAC compliant.Also new is the Economy cabinet/column range comprising cabinet speaker, corner speaker and column speaker versions.  All feature modern styling, and are available from 6W up to 36W depending on model.  All are easy to install, and although low cost, offer good sound quality for the investment.Third of the new products to be launched are the new Metal Sound Projectors made from extruded aluminium and delivering very high quality speech and music reproduction.  The projectors are available in either a 20W version or a 12W Bi-Directional version and are both EVAC compliant. With the new products, Bosch Security Systems will also show its proven Praesideo technology - the world's first fully digital public address and emergency sound system characterised by the flexibility in the system configuration, simplicity in installation and high-quality audio reproduction.  Completing its display will be the Plena range of PA solutions that can be configured from relatively modest applications up to the largest, multi-zone sites, and is fully compatible with the broad Bosch range of microphones and loudspeakers.

A new, highly informative demonstration CD on CCTV camera innovation is now available from Bosch Security Systems.  Essential for both dealers and end-users, the CD provides comprehensive information on all aspects of camera requirements, installation and usage.  The CD begins with a short introduction on the increasing importance of CCTV and how more and more organizations rely on secure and efficient surveillance.  It continues with a non-technical overview of the company's key camera ranges and their various applications, and includes product documentation as well as a download of a Configuration Tool for Imaging Devices.  Dynamic video clips illustrate the main product features/benefits, and examples of applications of traffic, city centers, banks and dark scenes are clearly and attractively presented.  Connectivity to control devices – an important aspect of camera innovation - is also briefly explained.  Documentation includes data sheets, installation manuals and application notes.  The entire program, available in English, is easy to navigate.  The CD is aimed at installers, dealers and end-users in Europe, the Middle East and Africa.  It can be obtained from the Bosch website www.boschsecurity.comby clicking on the appropriate region and country, then on 'Free Camera CD' and completing the order form. Comprehensive CCTV camera information for dealers and end-users Easy-to-navigate chapters covering all aspects of camera surveillance Non-technical overview of camera ranges for convenience of choice Full product literature and Configuration Tool for Imaging Devices

At IFSEC 2005, Bosch Security Systems displayed two new Day/Night versions of its high-performance, 15-bit DSP DinionXF range.  For round-the-clock surveillance, the DinionXF Day/Night versions feature a built-in infrared filter for daylight surveillance that automatically moves from in front of the lens when the light level falls below a present value (at night infrared is the most useful region of the electromagnetic spectrum for imaging).  For night-time surveillance, the camera also automatically switches to monochrome mode to increase sensitivity. The DinionXF Day/Night versions have built-in, through-the-lens infrared metering and detection that prevent reversion to daylight mode if the camera is illuminated by an infrared source at night.  The IR filter can also be switched manually via the alarm input, through the camera menu or via the Bilinx coaxial bi-directional control interface.  The new cameras also feature SensUp that dramatically enhances the effective sensitivity by decoupling image accumulation from the video output and by increasing accumulation time on the CCD up to ten times.  Bosch’s SensUp works with continuous shutter speed adjustment for the smoothest possible video level control.  SensUp is most effective where the only light is from the moon, stars and scattered radiation. Enhanced night-time imaging guarantees round-the-clock surveillance Lens Wizard automatically detects lens type and sets focus for 24-hour cycle Video Motion Detection allows selection of four fully programmable areas XF-Dynamic feature extends dynamic range for outstanding image quality CCD imaging and DSP technologies enable best possible sensitivity

Bosch Security Systems has won the NSCA’s 2005 Innovations in Technology award in the Security/Fire/Life Safety category.  Bosch was one of only three finalists and won the award for the highly innovative mechanically-switchable IR filter featured in its high-performance LTC 0495 and LTC 0620 DinionXF Digital CCD Day/Night Cameras.  The IR filter, which is automatically removed when the light level falls below a preset value, ensures the highest image quality, even under poor lighting conditions, day or night.  For night-time surveillance, the camera also automatically switches to monochrome mode to increase sensitivity.The advanced technology of the 1/3-inch LTC 0495 and LTC 0620 Digital CCD Day/Night Cameras guarantees around-the clock surveillance, making the camera ideal for high-security areas including public utilities, prisons, and banks, as well as for situations where identification and image detail are critical, such as in retail stores. Over 100 companies entered products for consideration in this year’s Innovations in Technology Award Program, held at the Systems Integration Expo, Orlando, FL.  Finalists were selected by a panel of judges, and then voted on by Expo attendees to determine the winner of each category.The National Systems Contractors Association (NSCA) is the leading non-profit association representing the commercial electronic systems industry, and has more than 2,500 member companies worldwide.

The first Dinion cameras from Bosch set a new benchmark for high picture quality and ease of set-up.  The new DinionXF cameras surpass even that by delivering even higher picture quality and more detail – thanks to its 15 bit video processing.Other features include: Fast automatic set-up for easy installation Optional Bosch ‘Bilinx’ system allows remote set-up over the video coax cable – with no extra wiring required Higher sensitivity and sharper images More detail in both the high-light and low-light areas Built-in global scene change detector automatically adjusts to changing light conditions (switching on security lights etc, sun etc) Lens wizard automatically detects the lens type for quick automatic set-up and accurate focus 24 hours a day Monochrome or colour versions with extra NightSense for enhanced night viewing Video motion detection using 4 independently programmable areas Alarms displayed on-screen or used to activate alarm outputs Up to 3 programmable operating modes with easy switching between them – e.g. for day, night or alarm conditions Programmable backlight compensation handles even the most difficult lighting conditions

Bosch Dinion XF cameras the first to use true 15 bit video processing for higher image quality.  They not only capture the full dynamic range of the scene but also adapt intelligently to poor changing or conditions.Features include: Low light capability down to 0.018 lux High resolution of 768 x 492 pixels Up to 1 km cable lengths for long runs without video amplifiers NightSense boosts sensitivity in low light Motion Detection with 4 selectable areas SensUp and Dynamic Noise Reduction maintains high image quality under adverse condition Lens Wizard for automatic set-up

1/3 inch, Colour, 540 resolution, Digital (DSP), Network, 0.30, Auto Iris, Direct Drive, 12 V DC / 24 V AC, C/CS mount, Motion Activated, 752 x 582, 50 ~ 60, Back Light Compensation, Auto Gain Control, White Balance, 1/50 [1/60] ~ 1/50,000 sec, > 50, Internal, Line Lock, PAL, BNC, 75 Ohm, H.264, M-JPEG, JPEG, STP, 10/100 Base-T, RJ45, RTP, Telnet, UDP, TCP, IP, HTTP, HTTPS, FTP, DHCP, 550 mA, 524, 58 x 66 x122, -20 ~ +45, 20 ~ 93

1/2 inch, Colour / Monochrome, 540, Digital (DSP), Auto Iris, Direct Drive, 0.00391, C/CS mount, 230 V AC, Motion Activated, 752 x 582, Back Light Compensation, White Balance, > 50, Internal, Line-lock, PAL, 1 Vp-p, 75 Ohms, 70 mA, 58 x 66 x122, 450, -20 ~ +50, 20 ~ 93

1/2 inch, Colour / Monochrome, 540, Digital (DSP), Auto Iris, Direct Drive, 0.00391, C/CS mount, 12 V DC, Motion Activated, 752 x 582, Back Light Compensation, White Balance, > 50, Internal, Line-lock, PAL, 1 Vp-p, 75 Ohms, 350 mA, 58 x 66 x122, 450, -20 ~ +50, 20 ~ 93

1/2 inch, Colour / Monochrome, 540, Digital (DSP), Auto Iris, Direct Drive, 0.008, C/CS mount, 85 ~ 265 V AC, Motion Activated, Wide Dynamic Range, 752 x 582, Back Light Compensation, Auto Gain Control, White Balance, 1/50 ~ 1/500,000, >50, Internal, Line-lock, PAL, 1 Vp-p, 75 Ohms, 4 W, 59 x 67 x 122, 450, -20 ~ +50, 20 ~ 93

1/2 inch, Colour / Monochrome, 540, Digital (DSP), Auto Iris, Direct Drive, 0.008, C/CS mount, 11 ~ 39 V DC, Motion Activated, Wide Dynamic Range, 752 x 582, Back Light Compensation, Auto Gain Control, White Balance, >50, Internal, Line-lock, PAL, 1 Vp-p, 75 Ohms, 4 W, 59 x 67 x 122, 450, -20 ~ +50, 20 ~ 93

1/2 inch, Monochrome, 570, Digital (DSP), Infrared, Auto Iris, Direct Drive, 0.0021, C/CS mount, 85 ~ 265 V AC, Motion Activated, Wide Dynamic Range, 752 x 582, Back Light Compensation, Auto Gain Control, 1/50 ~ 1/500,000, > 50, Internal, Line-lock, CCIR, 1 Vp-p, 75 Ohms, 4 W, 59 x 67 x 122, 450, -20 ~ +50, 20 ~ 93

1/2 inch, Monochrome, 570, Digital (DSP), Infrared, Auto Iris, Direct Drive, 0.0021, C/CS mount, 11 ~ 39 V DC, Motion Activated, Wide Dynamic Range, 752 x 582, Back Light Compensation, Auto Gain Control, 1/50 ~ 1/500,000, > 50, Internal, Line-lock, CCIR, 1 Vp-p, 75 Ohms, 4 W, 59 x 67 x 122, 450, -20 ~ +50, 20 ~ 93

1/3 inch, Colour / Monochrome, 540, Digital (DSP), Auto Iris, Direct Drive, 0.006, C/CS mount, 230 V AC, Motion Activated, Wide Dynamic Range, 752 x 582, Back Light Compensation, White Balance, > 50, Internal, Line-lock, PAL, 1 Vp-p, 75 Ohms, 70 mA, 58 x 66 x122, 450, -20 ~ +50, 20 ~ 93

1/3 inch, Colour / Monochrome, 540, Digital (DSP), Auto Iris, Direct Drive, 0.006, C/CS mount, 12 V DC, Motion Activated, Wide Dynamic Range, 752 x 582, Back Light Compensation, White Balance, > 50, Internal, Line-lock, PAL, 1 Vp-p, 75 Ohms, 350 mA, 58 x 66 x 122, 450, -20 ~ +50, 20 ~ 93

1/3 inch, Colour, 540, Digital (DSP), Auto Iris, Direct Drive, 0.01, C/CS mount, 85 ~ 268 V AC, Motion Activated, 752 x 582, Back Light Compensation, White Balance, 1/50 ~ 1/500,000, > 50, Internal, Line-lock, PAL, 1 Vp-p, 75 Ohms, 4 W, 59 x 67 x 122, 450, -20 ~ +50, 20 ~ 93

1/3 inch, Colour, 540, Digital (DSP), Auto Iris, Direct Drive, 0.01, C/CS mount, 11 ~ 39 V DC, Motion Activated, 752 x 582, Back Light Compensation, White Balance, 1/50 ~ 1/500,000, > 50, Internal, Line-lock, PAL, 1 Vp-p, 75 Ohms, 4 W, 59 x 67 x 122, 450, -20 ~ +50, 20 ~ 93

1/3 inch, Monochrome, 480, Digital (DSP), Auto Iris, Direct Drive, 0.0031, C/CS mount, 12 ~ 28 V AC, 2.8 ~ 60, 752 x 582, Back Light Compensation, Auto Gain Control, 1/50 ~ 1/500,000, >50, Internal / Line-lock, CCIR/EIA, 1.0 Vp-p, 75 ohm, 4 W, 58 x 66 x 122, 450, -20 ~ +50, up to 98

1/2 inch, Colour / Monochrome, 540, Digital (DSP), Auto Iris, Direct Drive, 0.0024, CS mount, 12 V DC, 4 ~ 144, 752 x 582, Back Light Compensation, Auto Gain Control, 1/50 ~ 1/500,000, > 50, Internal/Line-lock, PAL/NTSC, 1.0 Vp-p, 75 Ohms, 350 mA, 58 x 66 x 122, 450, -20 ~ +55, 20 ~ 93

1/3 inch, Colour / Monochrome, 540, Digital (DSP), Auto Iris, Direct Drive, 0.0038, CS mount, 12 ~ 28 V AC, 752 x 582, Back Light Compensation, Auto Gain Control, 1/50 ~ 1/500,000, > 50, Internal/Line-lock, PAL/NTSC, 1.0 Vp-p, 75 Ohms, 4 W, 58 x 66 x 122, 450, -20 ~ +55, 20 ~ 93
